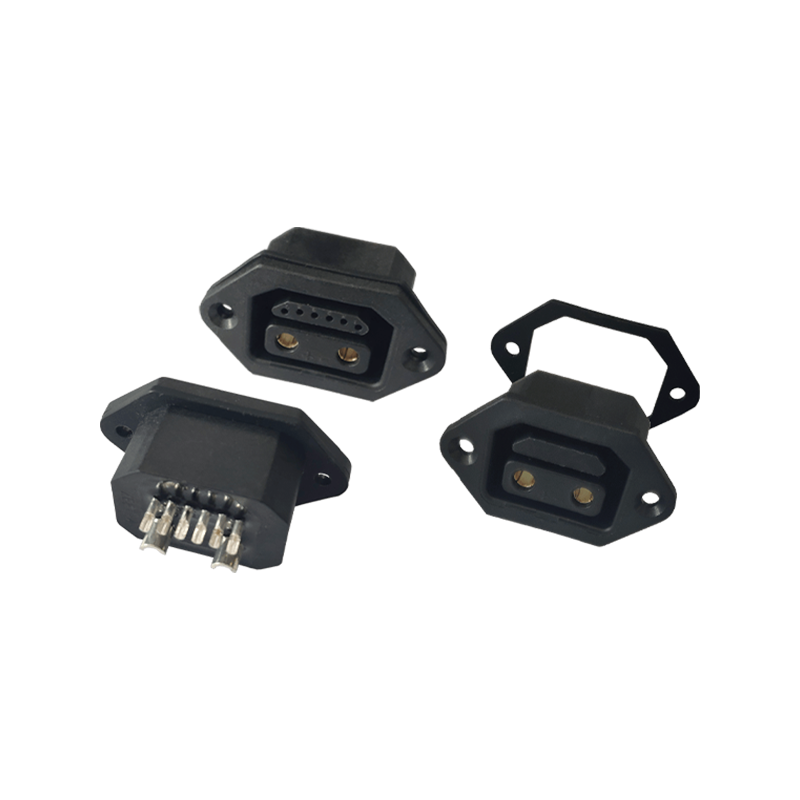

ZTC5011 2+6 Panel-Mount Power Socket

Key Features

The mounting flange helps establish a defined socket position on the equipment enclosure.

The power-and-signal contact arrangement supports a combined interface instead of separate connection points.

The open socket face is suitable for applications where the connection position must remain accessible.

The quick plug connection mode supports direct harness installation and service access.

Applications

The ZTC5011 2+6 Panel-Mount Power Socket can be used in battery equipment, industrial electrical devices, energy storage systems, and electric mobility assemblies. As a 2+6 power socket, it is suitable where power and signal circuits must enter the equipment through one designated position.

The equipment-side socket can also be evaluated for custom cable-harness projects based on the required current and installation drawing.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is the ZTC5011 suitable for panel installation?

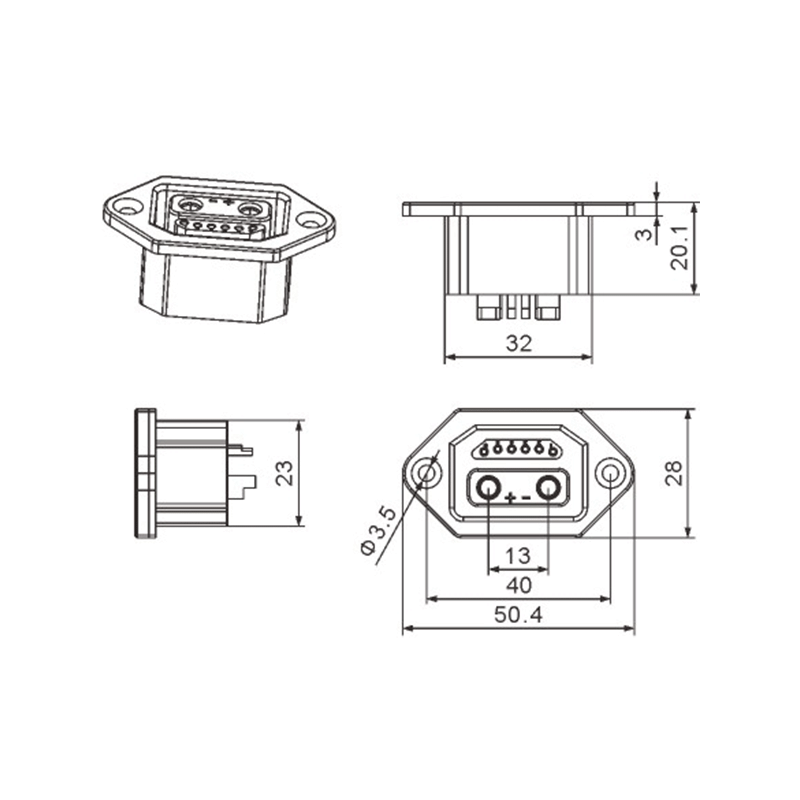

Yes. The mounting flange is designed for installation into an equipment panel or enclosure. Please confirm the dimensions against the product drawing.

Q2: Can it connect power and signal circuits?

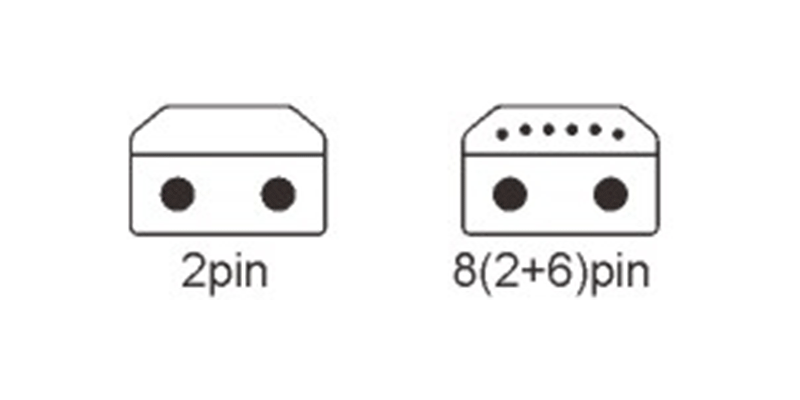

Yes. The product integrates two power contacts and six signal contacts in one connector interface.

Q3: Is this an equipment-side socket?
Yes. It provides a fixed connection point for the cable harness at the equipment side.

Q4: Can a custom harness be supplied?
Cable-harness configuration includes wire gauge, cable length, terminal processing, and project quantity.

Request a Quote

For a panel-mounted power socket project, please provide the required current, cable specification, installation drawing, and expected quantity.
