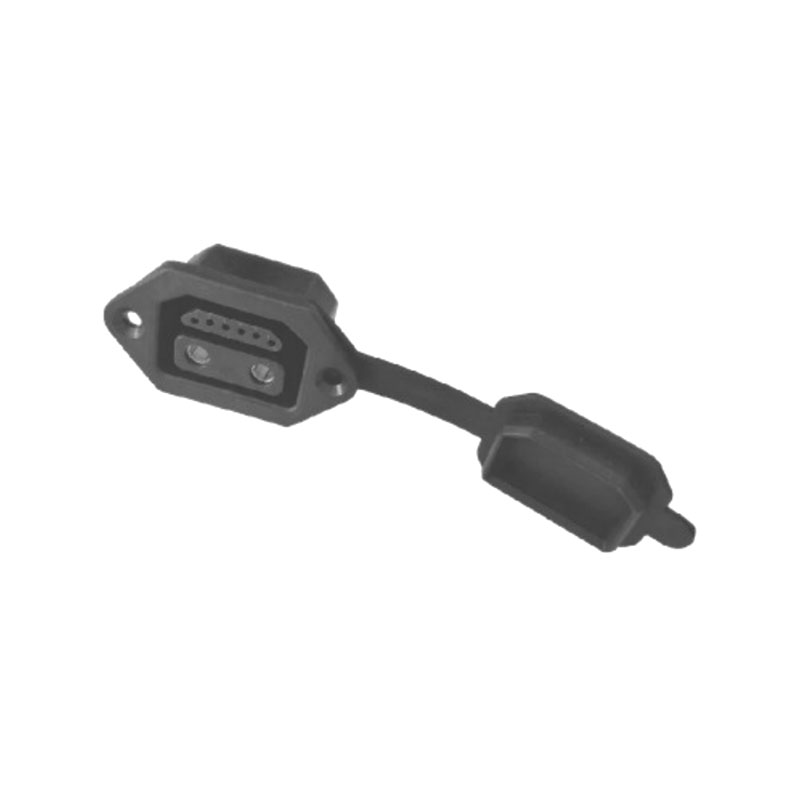

ZTC5010-A 2+6 Power Socket with Protective Cap

Key Features

The protective cap provides a cover for the socket face when no cable is connected.

The integrated power-and-signal contact arrangement supports one equipment-side connection point for separate circuit functions.

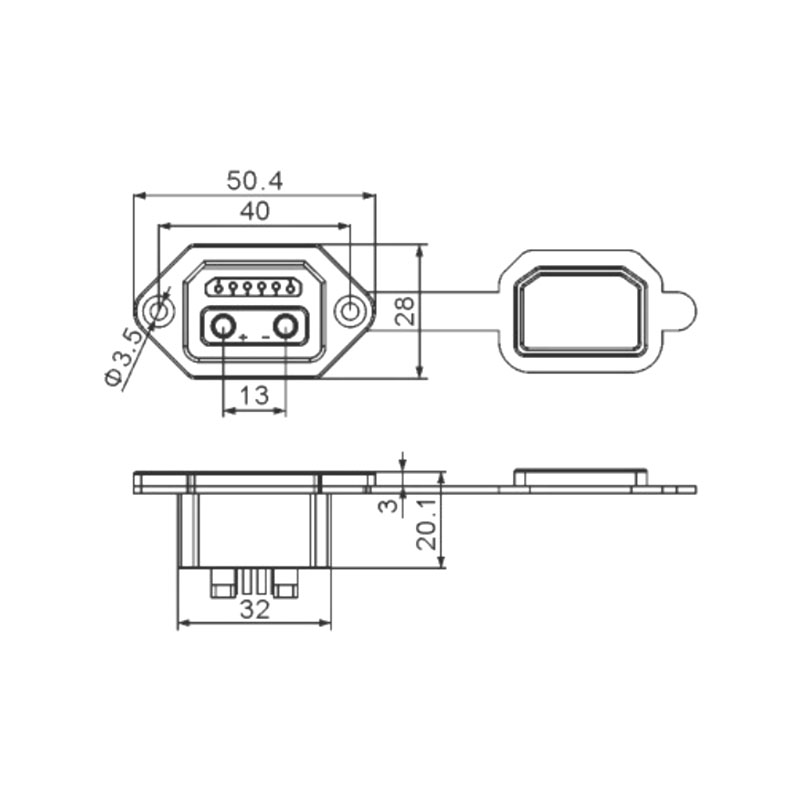

The socket housing is intended for installation into electrical equipment according to the supplied product drawing.

The quick plug interface supports direct connection with the required cable harness.

Applications

The ZTC5010-A 2+6 Power Socket with Protective Cap can be used in battery equipment, industrial electrical devices, energy storage systems, and mobile electrical assemblies. As a 2+6 power socket, it is suitable where power and signal circuits need to be organized through one connector interface.

The power socket with protective cap is appropriate when the connector face should be covered while the cable harness is disconnected.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the protective cap?
It covers the socket face when the cable harness is disconnected.

Q2: Can the socket transmit power and signal circuits together?

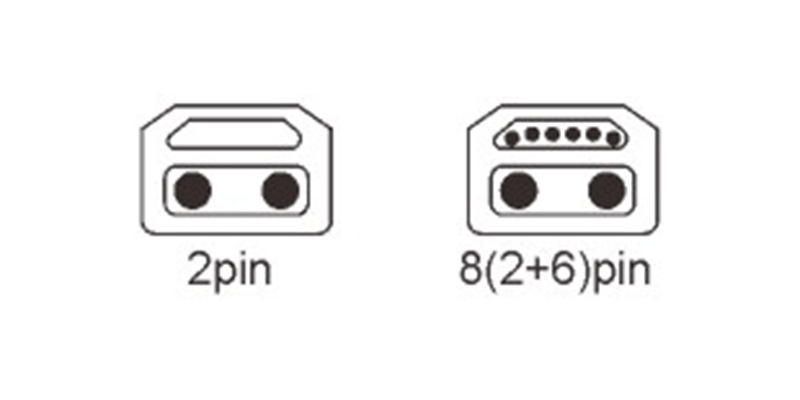

Yes. It integrates two power contacts and six signal contacts in one connector interface.

Q3: How is the cable harness connected?
The product uses a quick plug connection mode. Matching cable and installation requirements are part of the production configuration.

Q4: Can a cable harness be customized for this socket?
Cable-harness configuration includes wire gauge, cable length, terminal processing, and project quantity.

Request a Quote

For a power socket with protective cap project, please provide the required current, cable specifications, installation drawing, and expected quantity.
