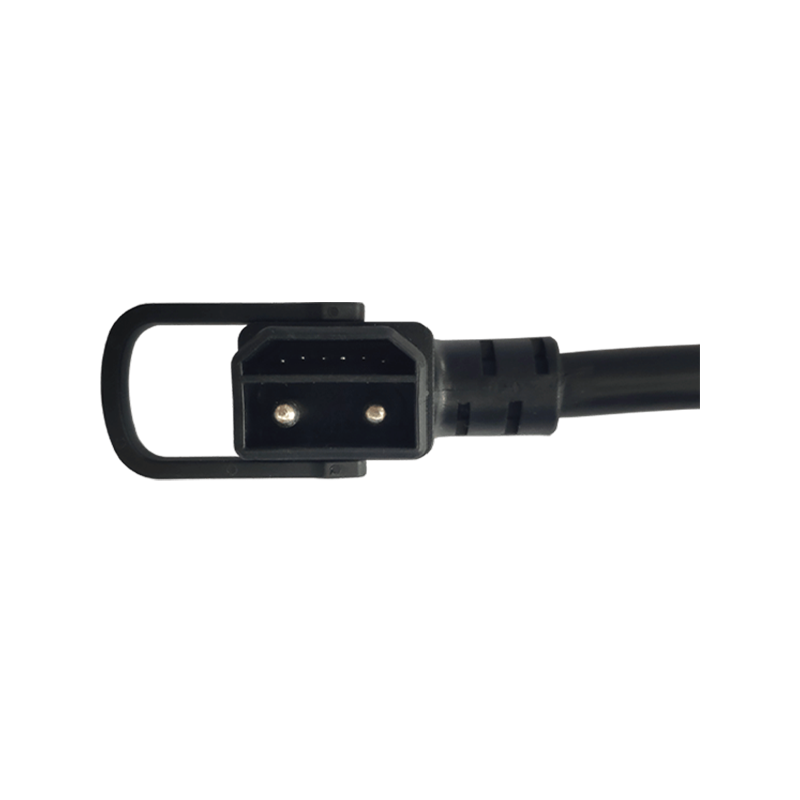

ZTC3056 2+6 High-Current Power Plug

Key Features

The integrated pull loop provides a direct handling point on the plug body during installation and servicing.

The combined power-and-signal contact arrangement helps reduce separate connector positions in the harness.

The cable-side plug form is suitable for applications that require a defined power and signal plug at the harness end.

The quick plug connection mode supports direct installation between the cable assembly and the equipment interface.

Applications

The ZTC3056 2+6 High-Current Power Plug is suitable for battery equipment, energy storage systems, industrial electrical devices and electric mobility harnesses requiring combined power and signal circuits. As a 2+6 power connector, it can support harness layouts that need to reduce separate connections for power conductors and signal wires.

This high-current power connector is appropriate where the integrated pull loop provides a practical handling point for the cable-side plug.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Can this plug transmit power and signal circuits at the same time?
Yes. It combines two power contacts and six signal contacts in one connector interface.

Q2: What is the function of the integrated pull loop?
It provides a defined grasping point on the connector body during connection and disconnection.

Q3: How is the connector connected?
The product uses a quick plug connection mode. Matching cable and installation requirements form part of the production configuration.

Q4: Can the product be supplied as part of a custom cable harness?
Cable-harness configuration includes wire gauge, cable length, terminal processing and project quantity.

Request a Quote

For a 2+6 high-current power plug project, please provide the required current, cable specification, harness length, expected quantity, and application drawing.
