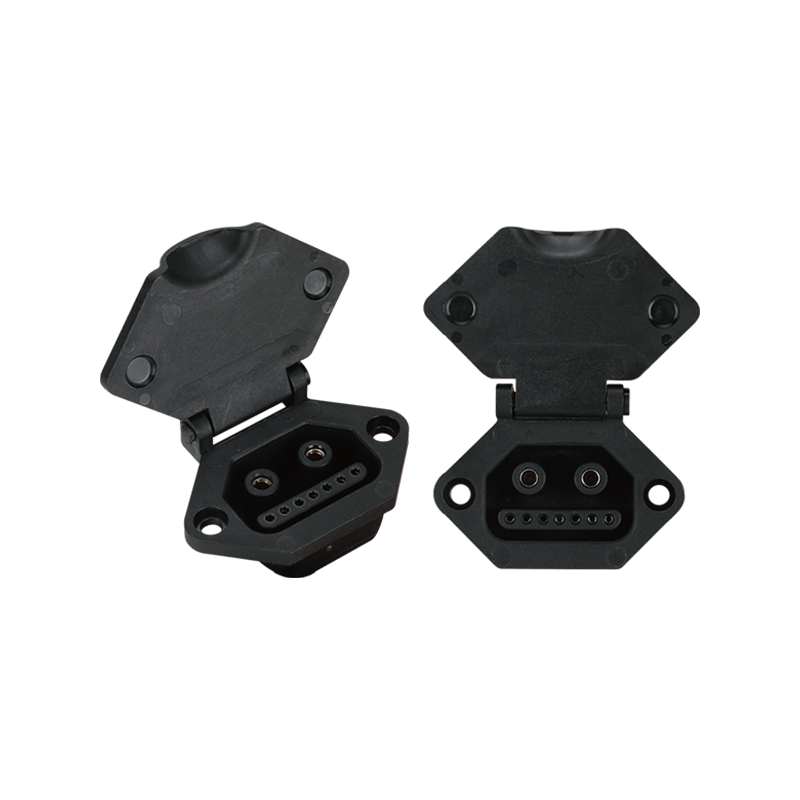

ZTC3038 2+7 Hinged-Cover Panel-Mount Power Socket

Key Features

The hinged cover provides a separate closure for the connection face when no cable is connected.

The panel-mount socket design creates a fixed connection position on an enclosure or equipment panel.

The integrated power-and-signal contact arrangement helps reduce separate entry points for different circuit functions.

The quick plug interface supports direct connection with the required cable assembly.

Applications

The ZTC3038 2+7 Hinged-Cover Panel-Mount Power Socket can be used in battery equipment, industrial devices, energy storage systems, and electrical enclosures with externally accessible connector positions. As a covered panel-mount power socket, it is suitable where the connection face should be closed when the harness is disconnected.

This 2+7 power socket can bring power and signal circuits into one equipment-side interface.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the hinged cover?
The cover closes over the socket face when no cable is connected.

Q2: Is the ZTC3038 suitable for equipment-side installation?

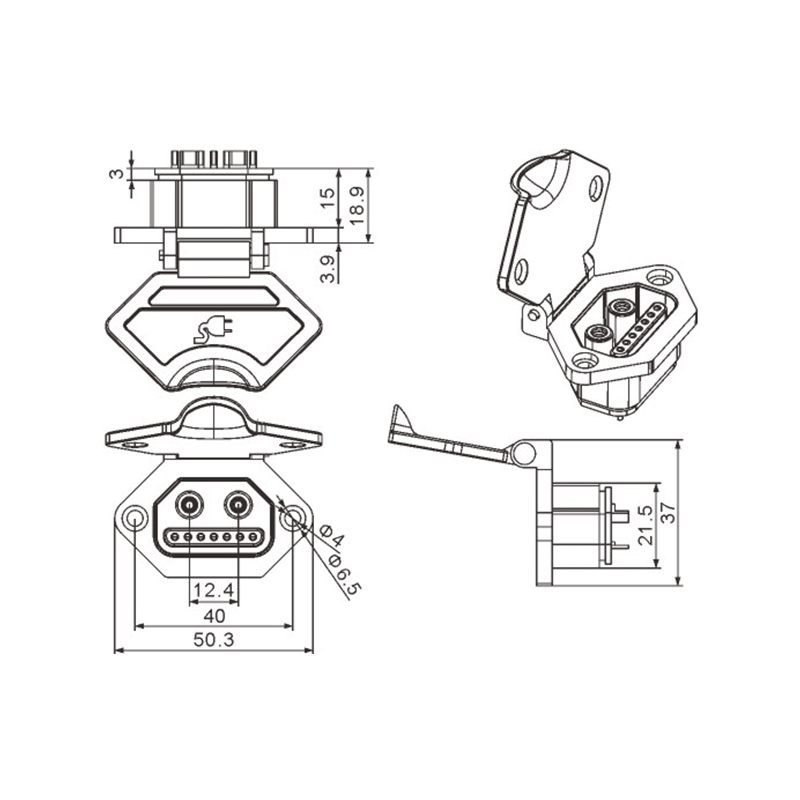

Yes. It is designed as a panel-mount socket. The mounting dimensions should be checked against the product drawing.

Q3: Can this socket connect power and signal circuits?

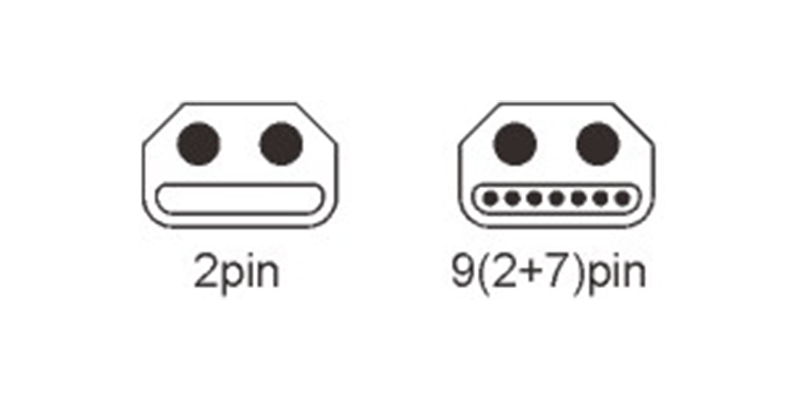

Yes. It integrates two power contacts and seven signal contacts in one connector interface.

Q4: Can a cable harness be supplied with this socket?
Cable-harness configuration includes cable gauge, terminal processing, wire length, and order quantity.

Request a Quote

For a hinged-cover panel-mount power socket project, please provide the required current, cable specification, installation drawing, and expected quantity.
