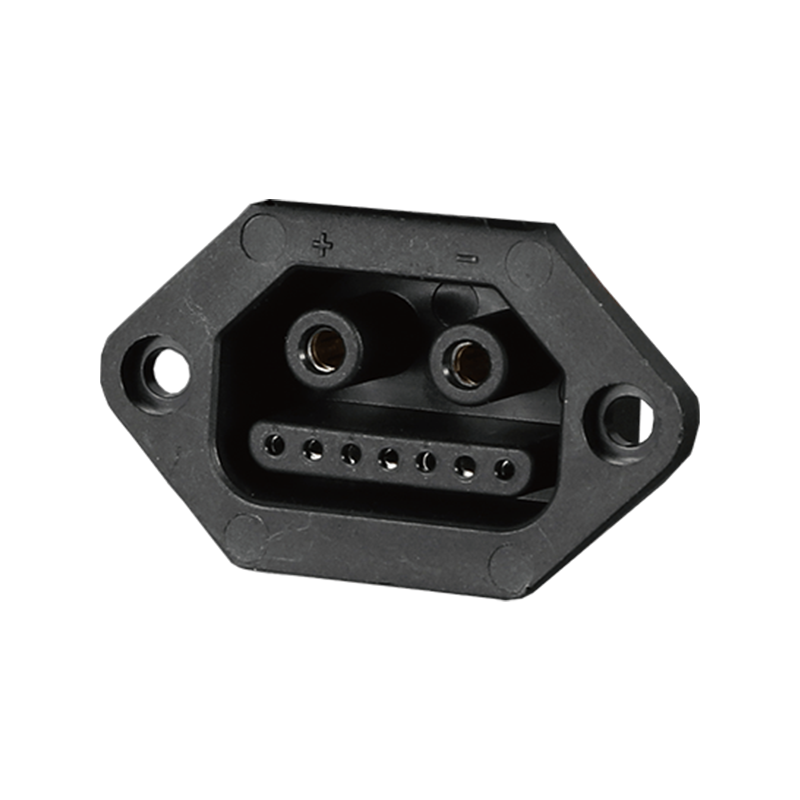

ZTC3039 2+7 Panel-Mount Power Socket

Key Features

The panel-mount construction provides a defined fixed location for the equipment-side connector.

The open socket face is suited to installations that require direct access to the connection interface.

The combined power-and-signal layout helps organize multiple circuit functions within one panel position.

The quick plug connection provides a direct method for connecting the matching cable assembly.

Applications

The ZTC3039 2+7 Panel-Mount Power Socket can be used in battery equipment, industrial electrical enclosures, energy storage systems, and electric mobility devices. As a 2+7 panel-mount power socket, it is suitable where the cable harness connects to a fixed equipment-side interface.

This equipment-side power socket can help keep power and signal circuits organized at one enclosure entry point.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is the ZTC3039 suitable for panel installation?

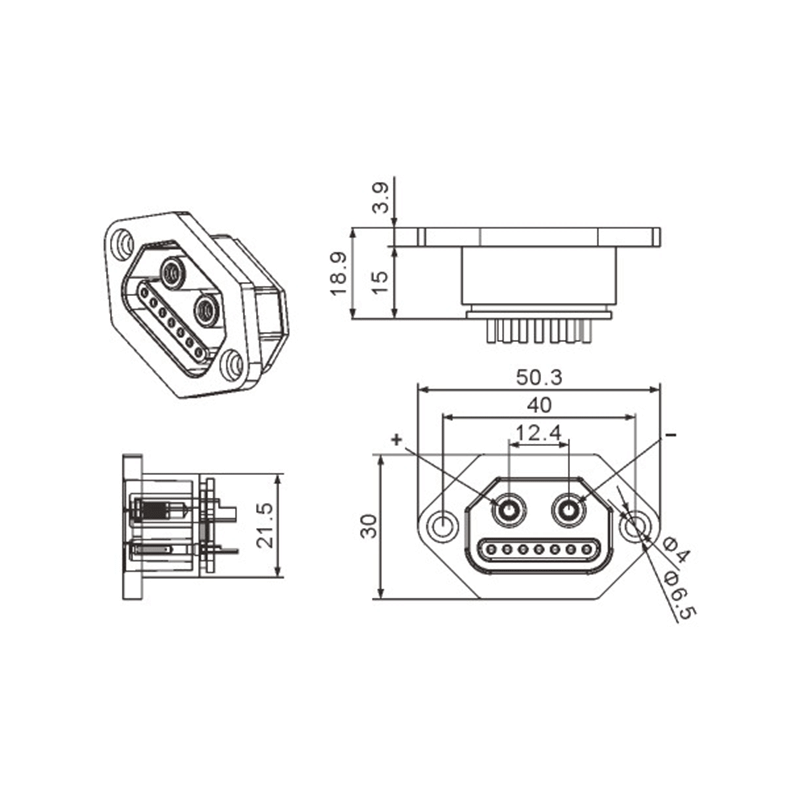

Yes. The socket housing includes a mounting flange. Installation dimensions should be checked against the product drawing.

Q2: Can it carry power and signal circuits at the same time?

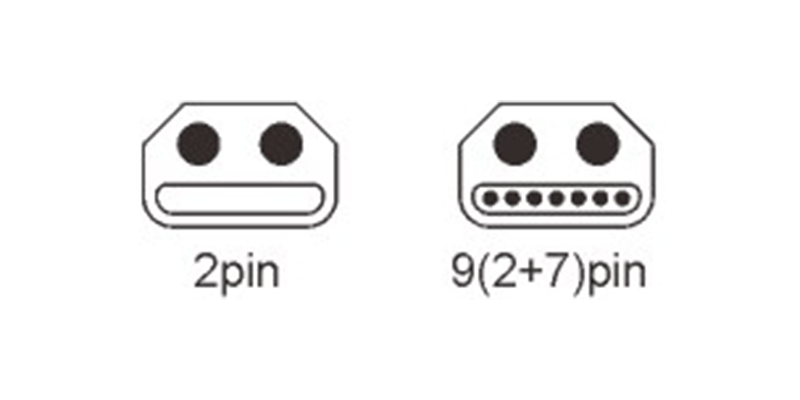

Yes. The product integrates two power contacts and seven signal contacts in one interface.

Q3: Is this a covered socket design?
This model has an open socket face. If a covered interface is required, the installation requirement should be specified before quotation.

Q4: Can a custom harness be supplied?
Cable-harness configuration includes cable gauge, signal-wire arrangement, terminal processing and order quantity.

Request a Quote

For a panel-mount power socket project, please provide the required current, cable specification, installation drawing, and expected quantity.
