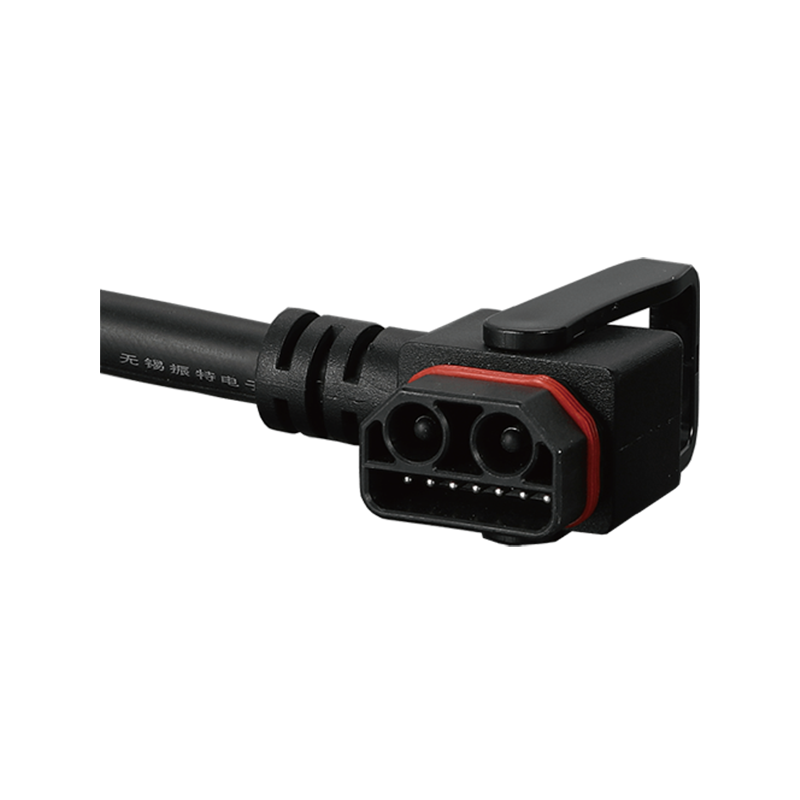

ZTC3036 2+7 Right-Angle Power Plug

Key Features

The right-angle cable route helps guide the harness along the available installation path.

The combined power-and-signal contact arrangement reduces the need for separate connector positions in the same assembly.

The cable-side plug form is suitable for harnesses requiring a defined connector end.

The quick plug connection mode supports direct installation during harness assembly and equipment servicing.

Applications

The ZTC3036 2+7 Right-Angle Power Plug is suitable for battery equipment, industrial electrical devices, energy storage systems and electric mobility harnesses. As a 2+7 power connector, it can support cable assemblies that require a controlled cable direction close to the connection point.

The right-angle power plug is appropriate where the available enclosure layout influences how the harness must leave the interface.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Can this plug carry both power and signal circuits?

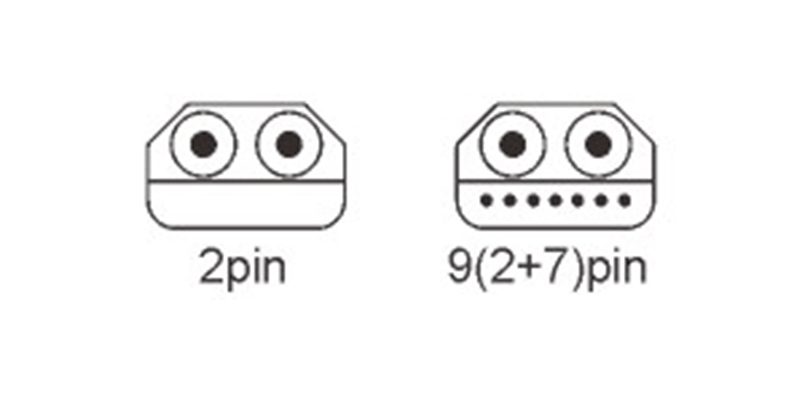

Yes. It combines two power contacts with seven signal contacts in one connector interface.

Q2: When should a right-angle cable route be considered?
It is suitable when the cable must turn close to the connector face to follow the available installation path.

Q3: How is the product connected?
The ZTC3036 uses a quick plug connection mode. Matching cable and assembly requirements form part of the production configuration.

Q4: Can the plug be supplied with a custom harness?
Cable-harness configuration includes wire gauge, cable length, terminal processing, and project quantity.

Request a Quote

For a right-angle power plug project, please provide the required current, cable specification, harness length, expected quantity, and application drawing.
