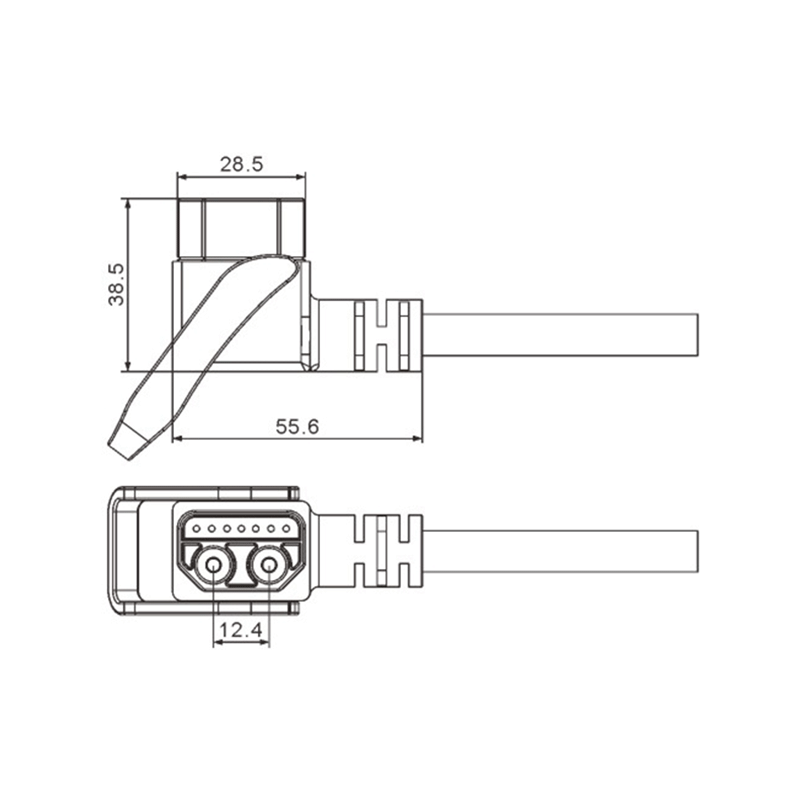

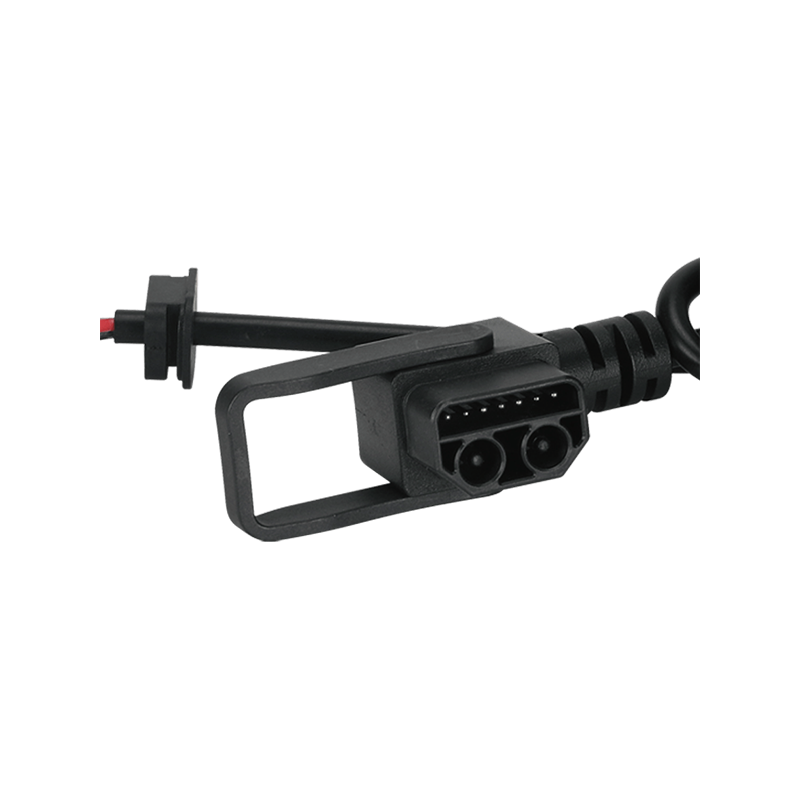

ZTC3037 2+7 Bent Power Plug with Insulating Cap

Key Features

The attached insulating cap provides a defined cover for the connector interface when it is disconnected.

The bent cable exit helps route the harness away from the connector face and along the available installation path.

The integrated power-and-signal contact arrangement supports a compact harness interface without separate signal connectors.

The quick plug connection mode supports direct installation during cable assembly and equipment servicing.

Applications

The ZTC3037 2+7 Bent Power Plug with Insulating Cap is suitable for battery equipment, industrial electrical devices, energy storage systems, and cable assemblies requiring a protected connector interface. As a 2+7 power connector, it can support projects that need both power and signal circuits in one plug.

The bent power plug with insulating cap is appropriate where the harness route and the protection of the disconnected interface both need to be considered.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the insulating cap?
The cap covers the connector interface when the plug is not engaged.

Q2: Can this plug carry power and signal circuits?

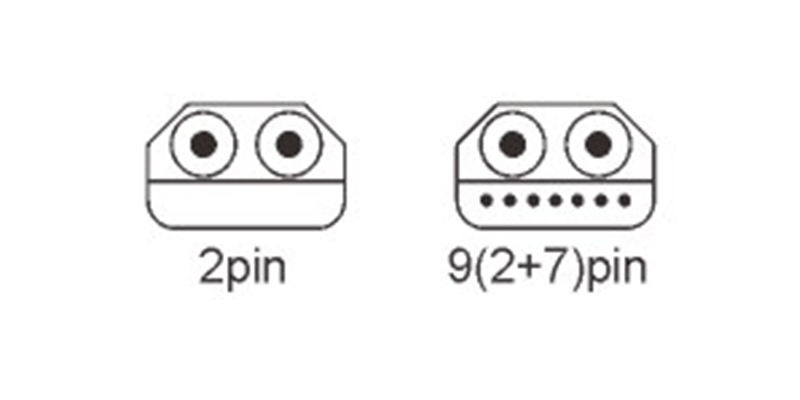

Yes. The product combines two power contacts with seven signal contacts in one connector interface.

Q3: When is a bent power plug useful?
It is suitable where the cable must leave the connection point at an angle rather than continue straight from the connector face.

Q4: How is the plug connected?
The ZTC3037 uses a quick plug connection mode. Matching cable and installation conditions form part of the production configuration.

Request a Quote

For a power plug with an insulating cap project, please provide the required current, cable specification, harness length, expected quantity, and application drawing.
