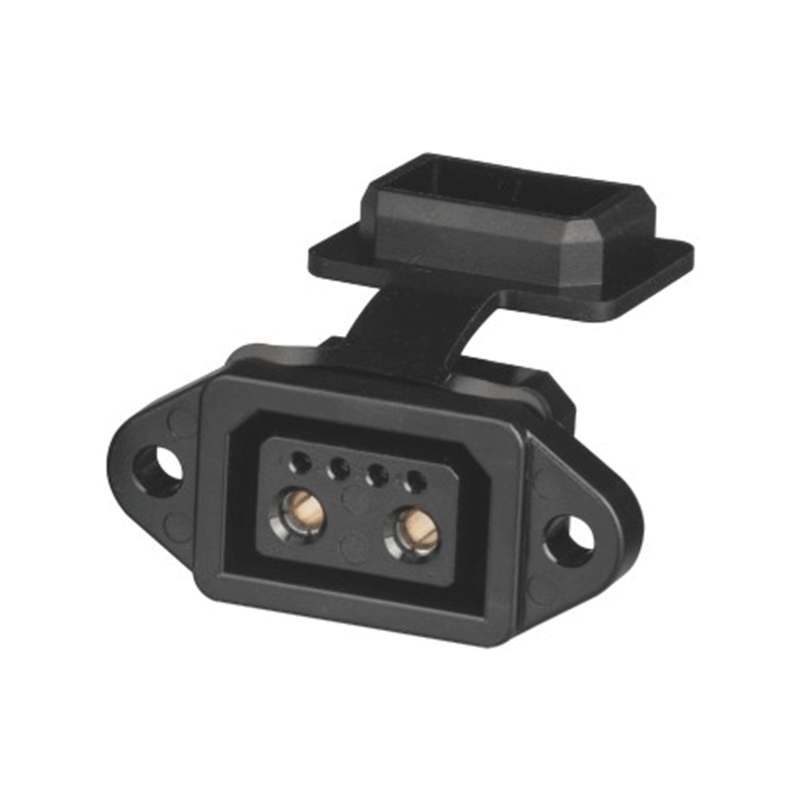

ZTC3002 2+4 Panel-Mount Power Socket with Hinged Protective Cover

Key Features

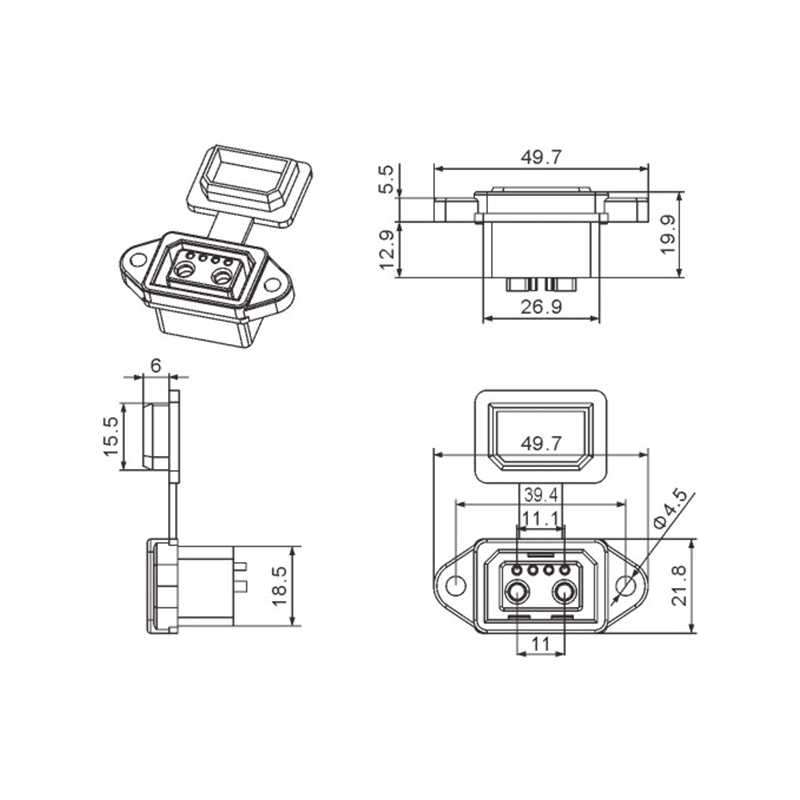

The mounting flange and fixing holes provide a stable panel-installation structure for equipment housings.

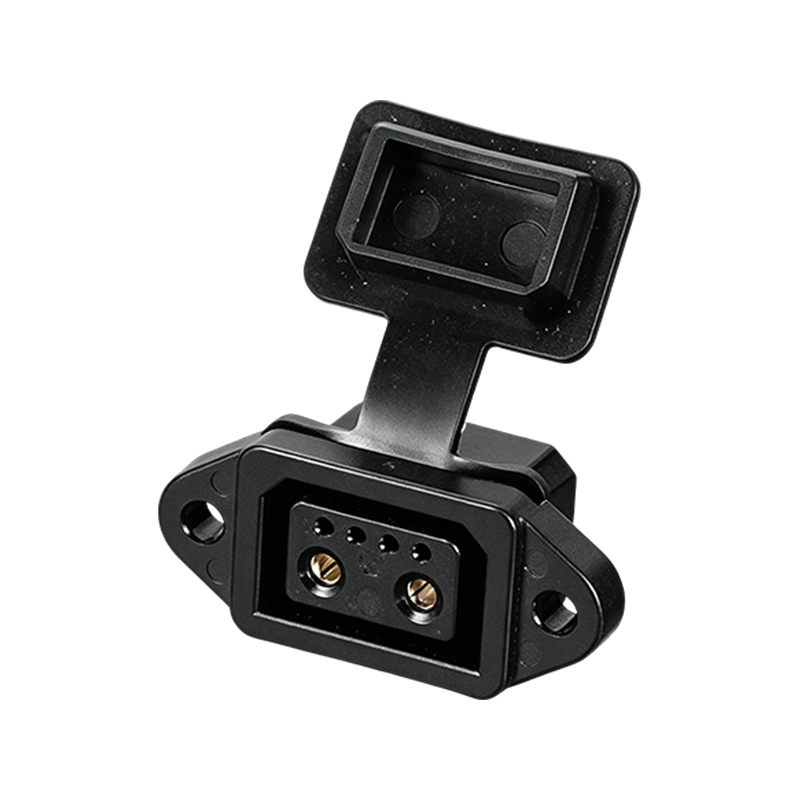

The hinged protective cover remains attached to the socket, avoiding loose-cap handling during storage or servicing.

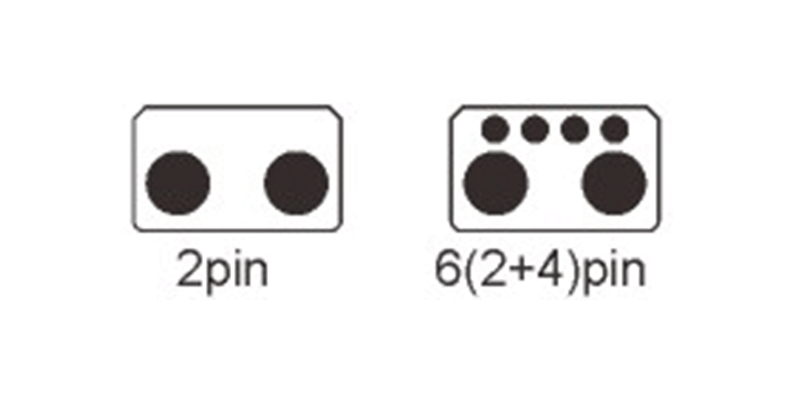

The 2+4 Power Socket integrates two power contacts and six signal contacts within one panel interface.
The socket structure creates a defined external connection point for equipment harnesses and power assemblies.
The quick plug connection supports practical equipment assembly and routine replacement.

Applications

This Panel-Mount Power Socket with Hinged Protective Cover is suitable for battery-powered equipment, portable power units, industrial electrical enclosures, and control equipment requiring a protected 2+4 Power Socket. The cover is useful when the panel interface may remain disconnected during transport, storage, charging, or maintenance.

Ordering & Quotation Information

For the ZTC3002 2+4 Panel-Mount Power Socket with Hinged Protective Cover, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the role of the hinged protective cover?
It covers the socket contact face when the connector is not in use and remains attached to the socket housing.

Q2: Can this socket be installed on an equipment enclosure?
Yes. Its mounting flange is designed for fixed installation on an equipment panel or enclosure.

Q3: Can the ZTC3002 combine power and signal contacts?
Yes. It includes separate two-pin and six-pin contact interfaces within one socket body.

Q4: Does this socket use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Contact us with your panel drawing, cable requirement, quantity, and application details for a quotation.
