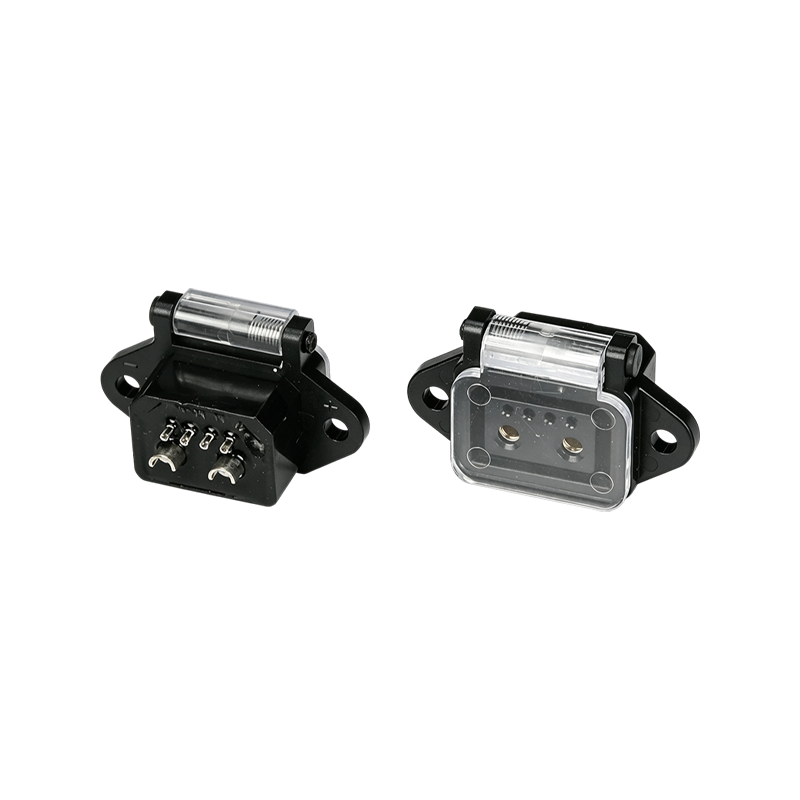

ZTC3002 2+4 Panel-Mount Power Socket with Cover

Key Features

The mounting flange and fixing holes support installation on equipment panels and enclosures.

The attached cover remains with the socket body and helps protect the contact face between connections.

The 2+4 Power Socket combines two power contacts and six signal contacts in one panel interface.

Its openable cover design keeps the connection point accessible when the equipment is in use.

Applications

This Panel-Mount Power Socket with Cover is suitable for industrial electrical enclosures, portable power equipment, battery-related devices, and control assemblies requiring a protected combined power and signal interface. It is appropriate where the panel connector may remain disconnected during storage, transport, or maintenance.

Ordering & Quotation Information

For the ZTC3002 2+4 Panel-Mount Power Socket with Cover, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the attached cover?
It helps protect the socket contact face when the connector is not connected.

Q2: Can this socket be installed on an equipment panel?
Yes. The flange and fixing holes are designed for panel or enclosure installation.

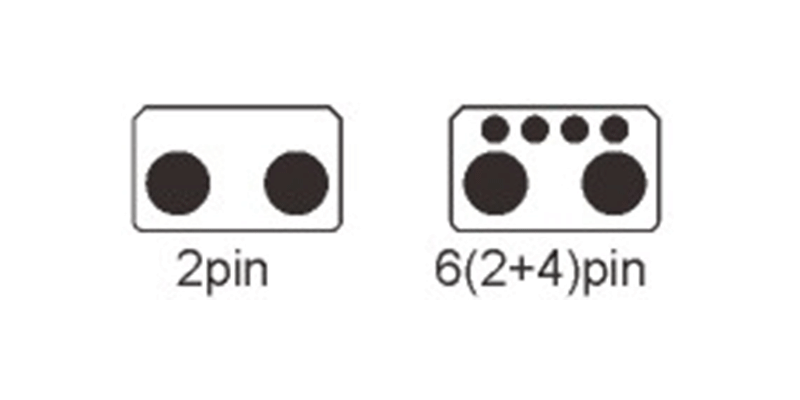

Q3: Can the ZTC3002 carry power and signal contacts together?
Yes. It combines separate two-pin and six-pin contact interfaces in one socket body.

Q4: Does this socket use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your panel drawing, wire specification, quantity, and application details for model confirmation and quotation.
