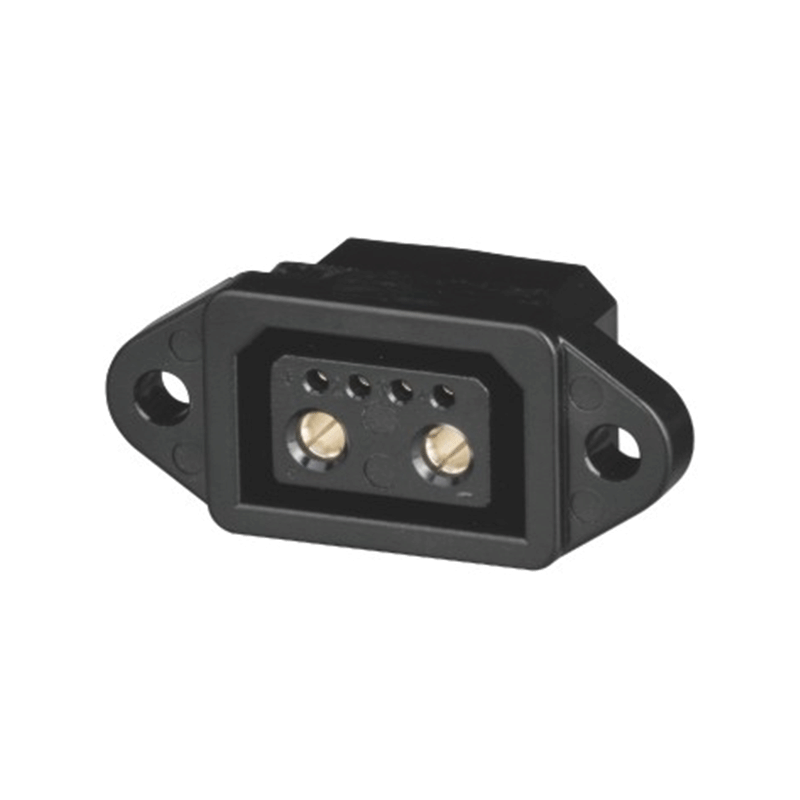

ZTC3002 2+4 Panel-Mount High-Current Power Socket

Key Features

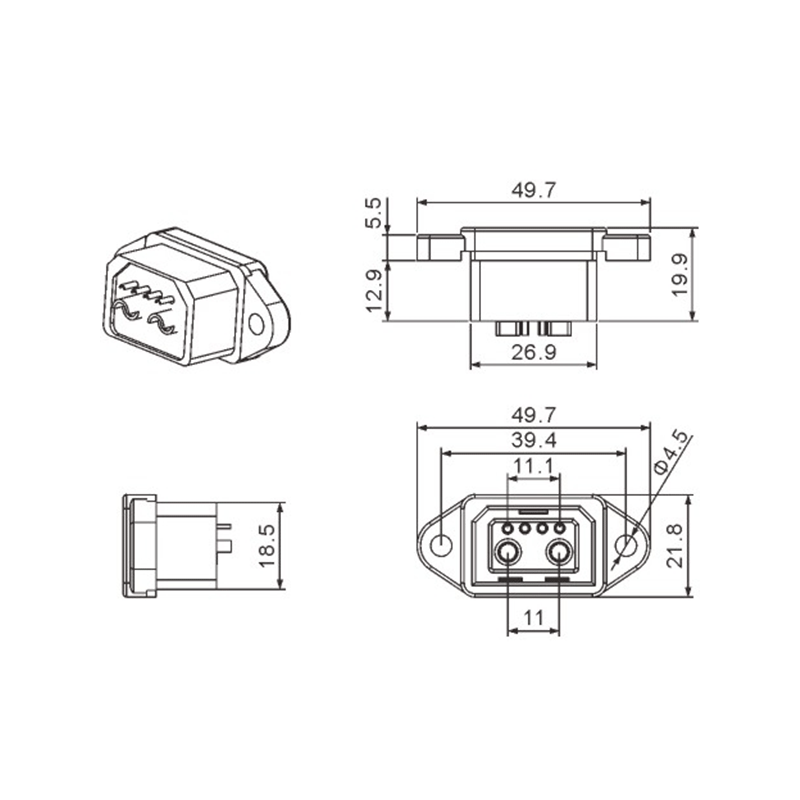

The flange-mounted housing is designed for fixed installation on equipment panels and enclosures.
The open-face socket structure keeps the connection interface accessible during normal equipment operation.
The 2+4 Power Socket combines two power contacts and six signal contacts at one panel location.
Its compact panel form supports integration into equipment housings without a separate connector bracket.
The quick plug connection structure supports efficient connection and replacement work.

Applications

This Panel-Mount High-Current Power Socket is suitable for industrial equipment, portable power devices, battery-related electrical units, and control enclosures requiring an accessible combined power and signal interface. It is appropriate where the socket is intended for regular use and an attached protective cover is not required.

Ordering & Quotation Information

For the ZTC3002 2+4 Panel-Mount High-Current Power Socket, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the installation method for this socket?
The socket is fixed to an equipment panel or enclosure through its mounting flange and fixing holes.

Q2: Can the ZTC3002 be used for power and signal wiring together?

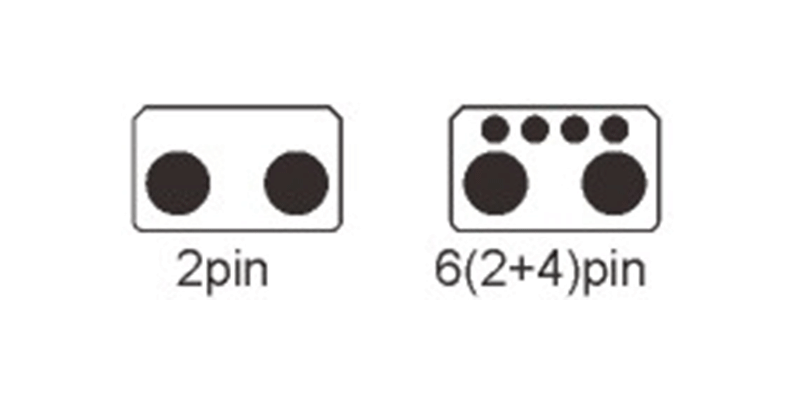

Yes. It includes separate two-pin and six-pin contact interfaces within one panel-mounted socket.

Q3: Is this version supplied with a protective cover?
No. This version uses an open-face socket structure.

Q4: Does the ZTC3002 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your panel drawing, wire specifications, required quantity, and application details for model confirmation and quotation.
