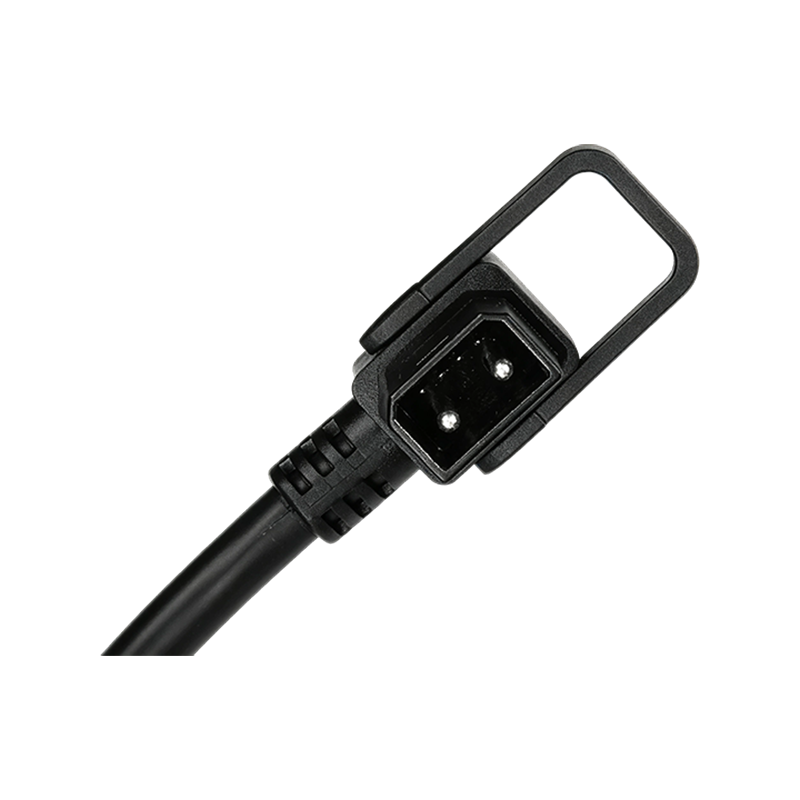

ZTC3001 2+4 Right-Angle Power Plug with Pull Handle

Key Features

The right-angle housing supports cable routing close to the equipment body where front-facing cable clearance is limited.
The integrated pull handle provides a practical grip point during connection and disconnection.

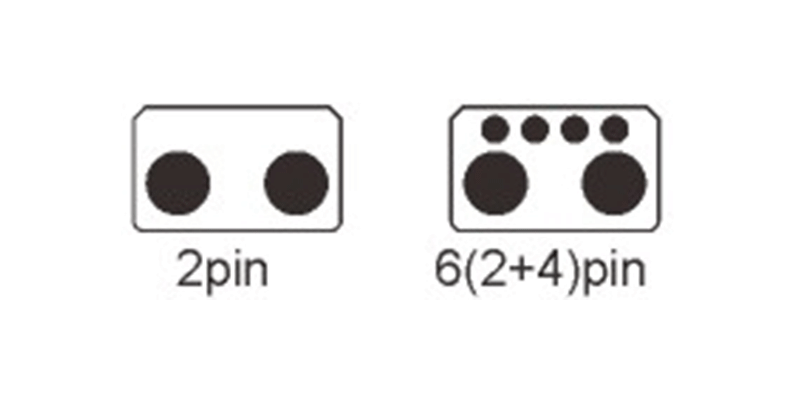

The 2+4 Power Plug combines two power contacts and six signal contacts within one connector interface.
Its molded cable-side structure is suitable for integration into electrical harness assemblies.
The quick plug design supports equipment assembly and connector replacement.

Applications

This Right-Angle Power Plug with Pull Handle is suitable for industrial electrical equipment, portable power units, battery-powered devices, and harness assemblies where cable routing needs to follow the side of the equipment. The pull handle is useful for applications involving regular connection, disconnection, or maintenance access.

Ordering & Quotation Information

For the ZTC3001 2+4 Right-Angle Power Plug with Pull Handle, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the pull handle?
The pull handle provides a defined grip point for handling the plug during connection and disconnection.

Q2: Why choose a right-angle power plug?
A right-angle housing can help route the cable alongside the equipment where a direct cable exit is not preferred.

Q3: Can this product carry power and signal connections together?
Yes. It uses separate two-pin and six-pin contact interfaces in one plug body.

Q4: Does the ZTC3001 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your required quantity, cable specifications, application details, and customization request for model confirmation and a quotation.
