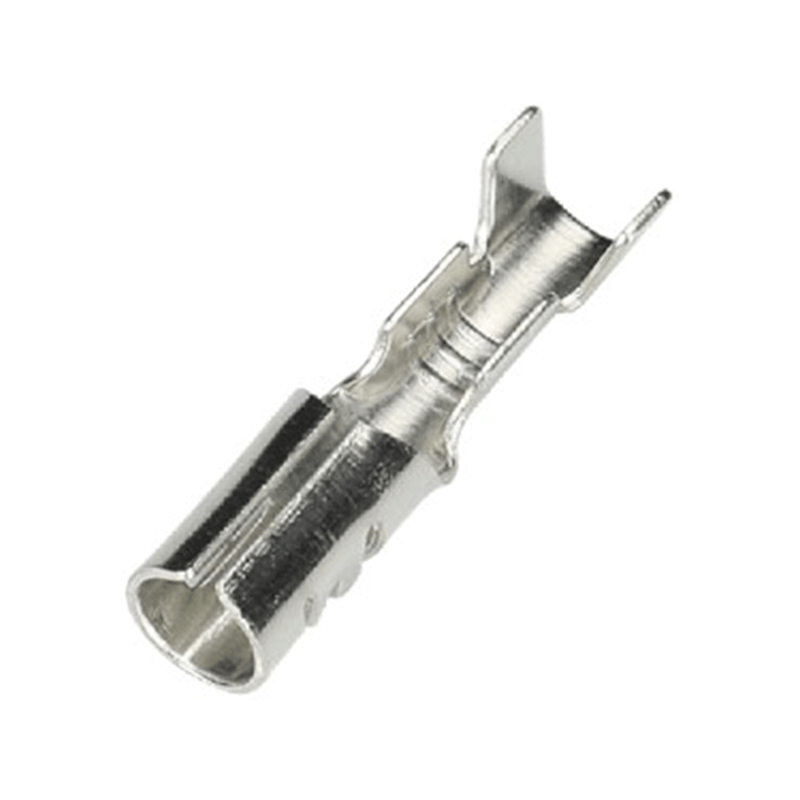

DJ221 Round Socket Crimp Terminal

Key Features

Terminal variants cover conductor sizes from 0.3 mm² to 3.0 mm².

The series includes straight and horizontal-chain forms for different production methods.

Terminal thickness is available in 0.35 mm and 0.4 mm versions.

Phosphor copper with bright tin plating is specified for the contact system.

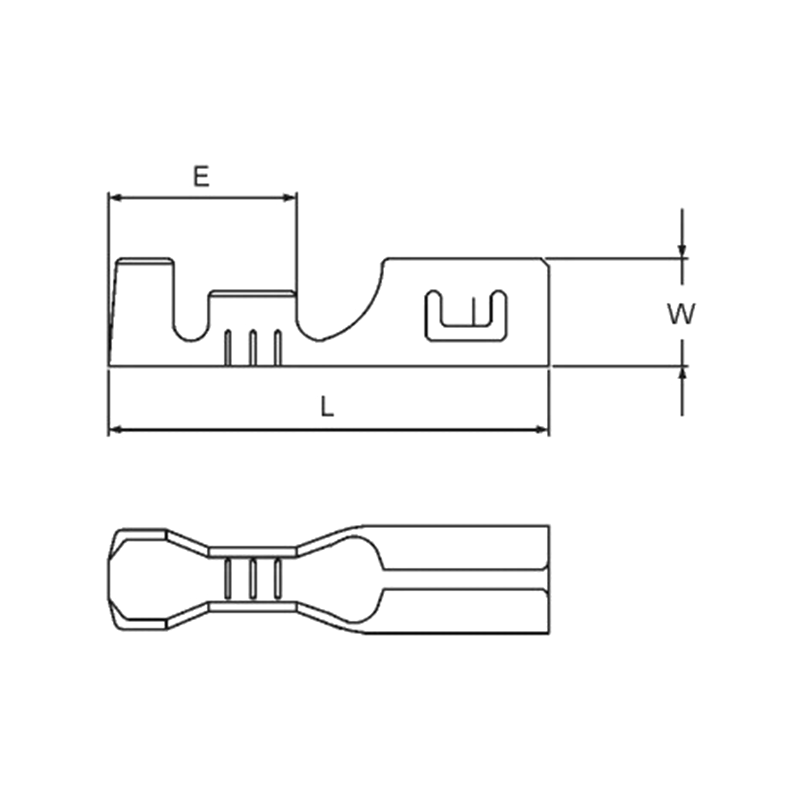

Variant dimensions include terminal lengths of 17.6 mm and 17.7 mm.

Applications

The round socket terminal is intended for wire harnesses using a compatible round pin contact. It is a practical option when terminal retention, conductor range, plating, and packaging form must be specified before crimping.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirement for quotation.

FAQ

Q1: How is DJ221 different from a round pin terminal?
DJ221 is a receptacle-style round socket terminal. It must be matched with a compatible round pin contact.

Q2: Which wire sizes are available?
The listed family covers 0.3-3.0 mm², but the exact range depends on the selected terminal type.

Q3: Are chain-fed versions available?
We have straight and horizontal-chain versions. Confirm the required supply form when requesting a quotation.

Q4: What information is needed before ordering?
Provide the mating terminal details, wire cross-section, required variant, packing form, and quantity.

Request a Quote

For a DJ221 Round Socket Crimp Terminal quotation, send your matching-contact and wire-size requirements.
