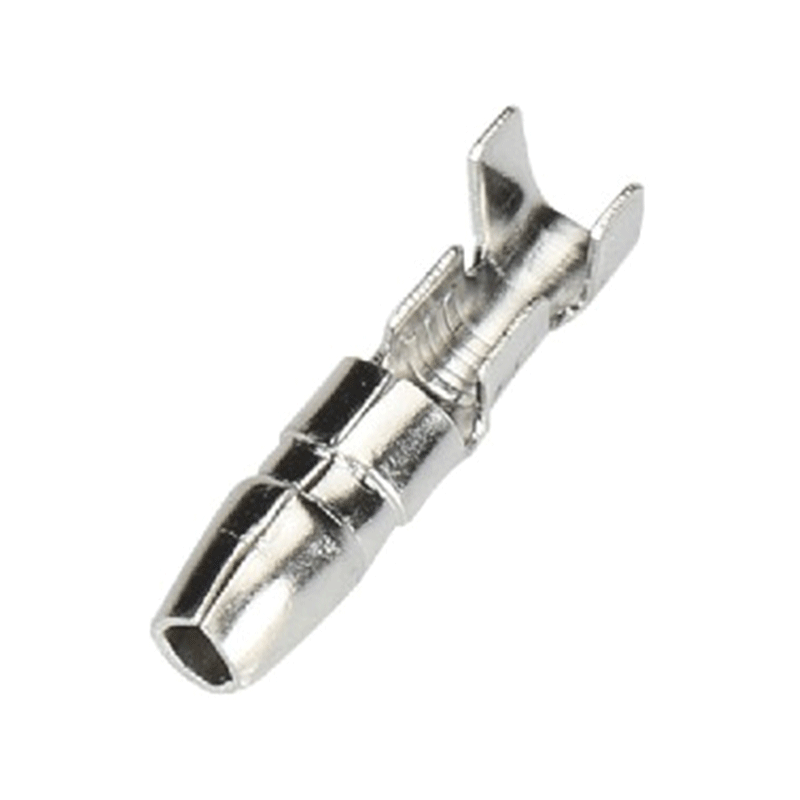

DJ211 Round Pin Crimp Terminal

Key Features

Round pin contact options include 3.5 mm and 3.95 mm variants.

Straight and horizontal-chain configurations support different assembly and feeding requirements.

The DJ211 family covers wire ranges from 0.5 mm² to 3.0 mm².

Brass construction with bright tin plating is specified in the manual.

Terminal thickness varies from 0.4 mm to 0.5 mm according to the selected type.

Applications

The round pin terminal is suited to harness assemblies using a compatible round receptacle contact. It is appropriate where buyers need to match conductor size, terminal diameter, plating, and feeding form to their crimping process.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirement for quotation.

FAQ

Q1: How do I select the correct DJ211 terminal?
Confirm the required terminal diameter, wire cross-section, crimp range, and mating receptacle before selecting a part number.

Q2: Can DJ211 terminals be supplied in chain form?
Availability is determined by the exact terminal type.

Q3: Can this terminal mate with any round receptacle?
No. The mating contact geometry, retention design, and terminal size must match.

Q4: What should be included in an RFQ?
Please provide the required model, wire size, mating terminal details, packing form, and quantity.

Request a Quote

For a DJ211 Round Pin Crimp Terminal quotation, send the required part type and application details for confirmation.
