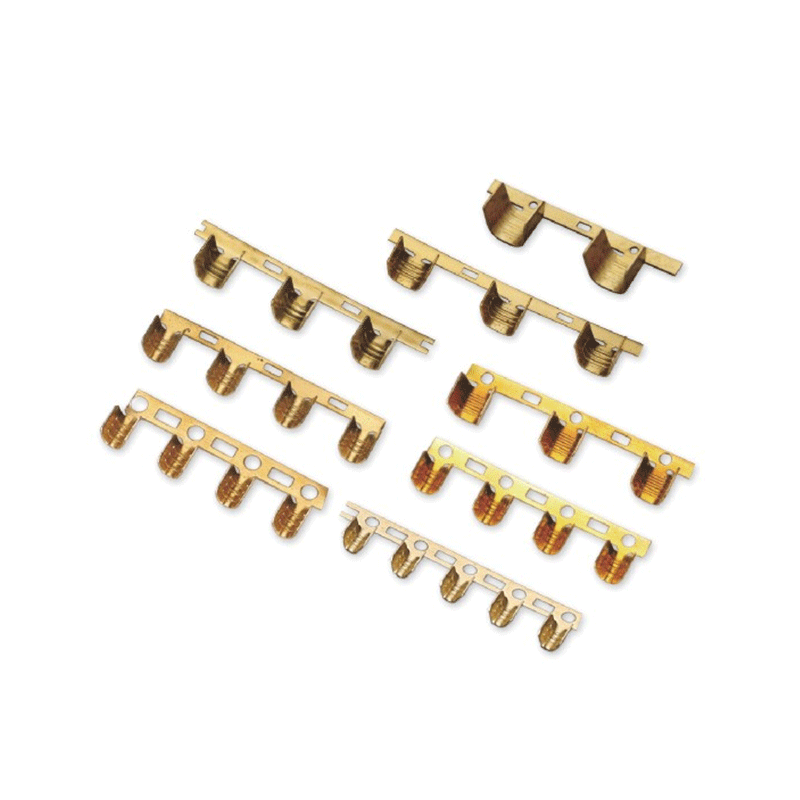

Open-Barrel Wire Splice Terminal Series

Key Features

Open-barrel structure for wire splice connections
Suitable for double-wire and multiple-wire joining
Brass construction with bare-brass or bright-tin-plated options
US, UH, UA and U1–U8 terminal configurations available
Conductor range covering 0.6–28.0 mm², depending on model
Horizontal-chain supply format for production handling

Applications

The Open-Barrel Wire Splice Terminal Series is used where two or more conductors need to be joined within a wire harness or electrical assembly. Typical applications include automotive wiring harnesses, appliance wiring, industrial control assemblies, power-distribution wiring, and general electrical harness production.

Ordering & Quotation Information

Please provide the required series or part number, conductor size, wire quantity for each splice point, required surface finish, and order quantity. These details help confirm the suitable Open-Barrel Wire Splice Terminal Series configuration for the intended wire-joining application.

FAQ

Q1: What type of wire connection is this terminal designed for?

It is designed for wire-to-wire splicing, including double-wire and multiple-wire joining applications.

Q2: What conductor sizes are available?

The series covers conductor sizes from 0.6 mm² to 28.0 mm². The applicable range depends on the selected terminal configuration.

Q3: Are plated versions available?

Yes. Depending on the model, terminals are available in bare brass or bright tin-plated brass.

Q4: What information is needed for quotation?

Please provide the required series or part number, conductor size, splice-wire quantity, surface requirement, and order quantity.

Request a Quote

Send your terminal series, conductor specification, surface requirement, and estimated quantity to receive a quotation for the appropriate wire splice terminal configuration.
