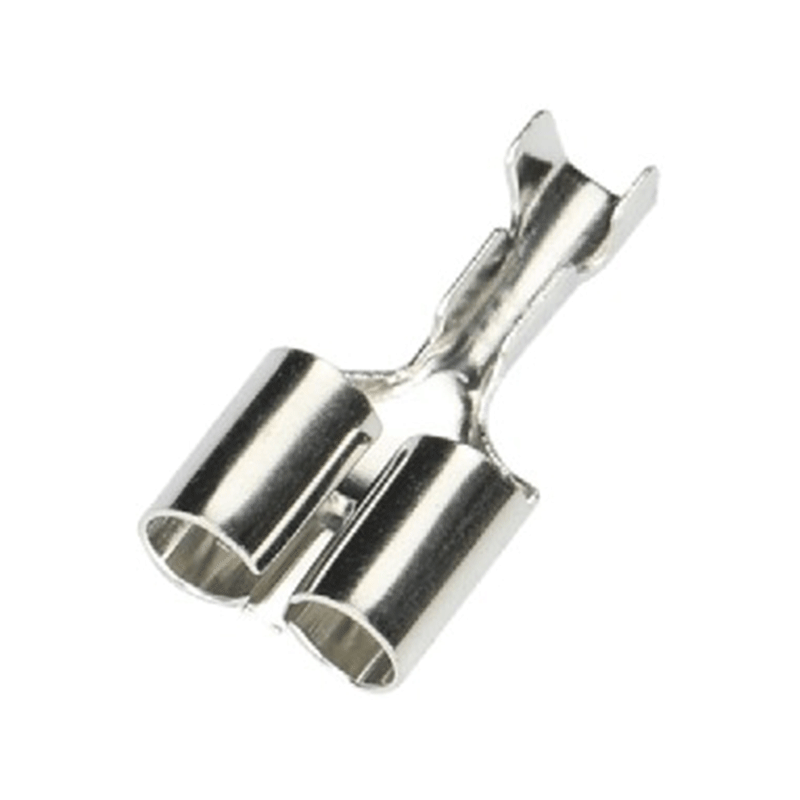

DJ222 4.5-5.0mm Round Socket Crimp Terminal

Key Features

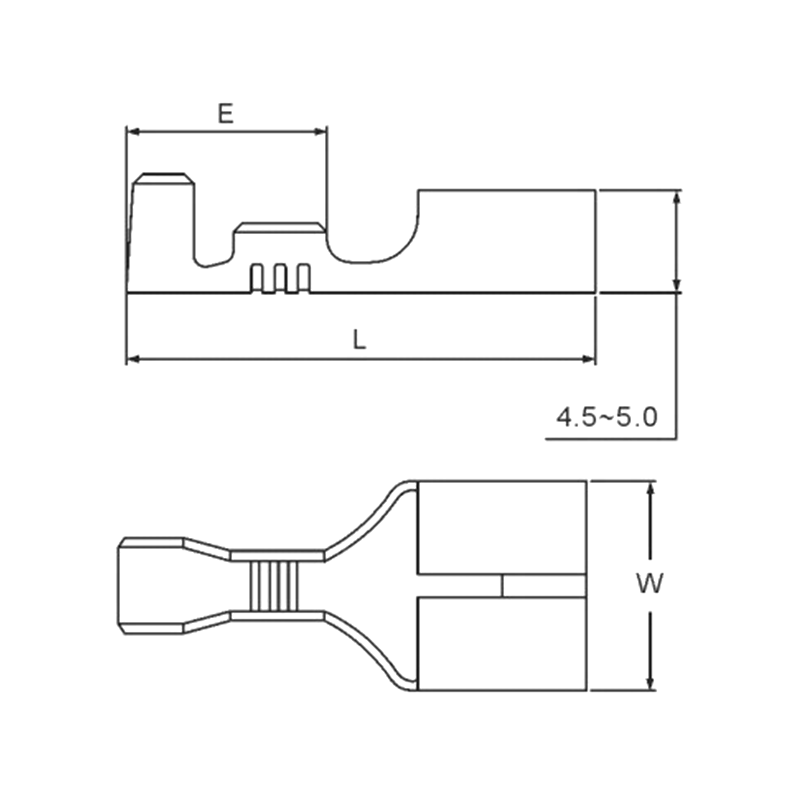

The drawing specifies a 4.5-5.0 mm round contact end.

The terminal is 20 mm long, with a 10 mm body width and 8 mm end dimension.

It supports conductors from 0.3 mm² to 1.0 mm².

Phosphor copper with bright tin plating is specified for the terminal.

Applications

Use this round socket crimp terminal where a larger round-contact interface is required and the applicable wire size remains within 0.3-1.0 mm². Confirm the mating pin geometry and retention requirements before terminal selection.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirement for quotation.

FAQ

Q1: What is the difference between DJ222-4A and DJ222-4AS?
Both are listed under the DJ222 family. The selected part number corresponds to the required supply form and terminal application.

Q2: What mating contact should be used?
The mating pin must match the 4.5-5.0 mm round contact end and the required retention design.

Q3: What wire size can this terminal accept?
The listed crimp range is 0.3-1.0 mm², equivalent to AWG 22-17.

Q4: What is the IP protection rating?
Protection level depends on the complete connector and housing design.

Request a Quote

For a DJ222 4.5-5.0mm Round Socket Crimp Terminal quotation, provide the matching-contact drawing and wire details.
