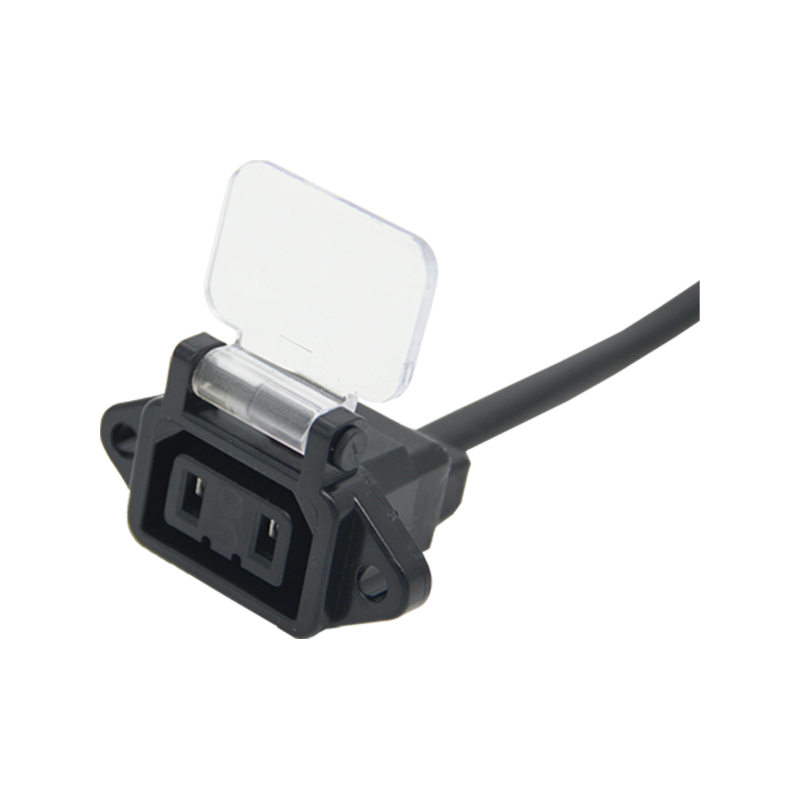

ZTC7214 Covered 2-Vertical Power Socket

Key Features

The attached cover remains with the socket, allowing the interface to be covered without a separate cap.

The cable-side body is suitable for equipment harnesses and replacement leads.

The socket family provides 2-pin, 3-pin 2+1, and 4-pin 2+2 contact configurations.

Applications

The ZTC7214 Covered 2-Vertical Power Socket is suitable for battery-powered equipment, portable electrical devices, charging units, and cable harnesses where the socket may be disconnected during transport, storage, or routine servicing. The cover helps keep the contact face closed during these periods.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Why use a covered power socket?
An attached cover helps close the socket contact face while the connection is unplugged.

Q2: Can this product be supplied for a cable harness?
Yes. The cable-side structure is suitable for integration into an assembled harness.

Q3: Which contact configuration should be selected?
Choose the 2-pin, 3-pin 2+1, or 4-pin 2+2 version according to the actual equipment circuit and cable requirements.

Q4: Does the ZTC7214 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send the required contact configuration, cable specification, application, and quantity for model confirmation and a quotation.
