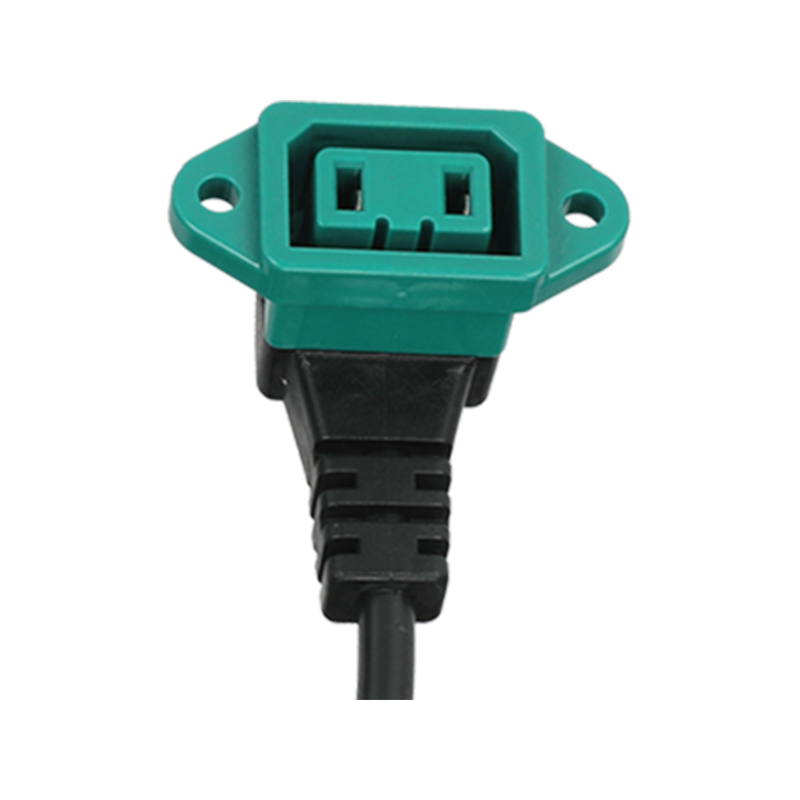

ZTC3015 Right-Angle 2-Vertical Power Socket

Key Features

Right-angle cable exit helps keep the harness close to the equipment surface where installation space is limited.

One-piece molded construction integrates the socket body and cable outlet into a compact assembly.

Available contact layouts include 2-pin, 3-pin 2+1, and 4-pin 2+2 versions.

Brass contacts with bright tin plating are specified for the connector series.

V-0 flame resistance and a -20°C to +90°C operating range are listed in the product manual.

Applications

Use this right-angle power socket in high-current cable assemblies where the mating connector, wire cross-section, and cable exit direction are defined by the equipment design. It is suitable for industrial electrical assemblies, battery-powered equipment, and other power-and-signal harnesses using the matching interface.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Which ZTC3015 configuration should I select?
Select the 2-pin, 2+1, or 2+2 version according to the required power and signal contacts. The mating connector and harness design form a coordinated configuration.

Q2: Is the cable exit straight or right-angle?
ZTC3015 uses a right-angle cable exit. Check the available installation space and harness routing before ordering.

Q3: What wire size can this connector accept?
The listed wire range depends on the selected contact configuration, from 0.5 mm² up to 3.0 mm².

Q4: What information is needed for a quotation?
Please provide the contact configuration, matching part, wire cross-section, cable requirement, and purchase quantity.

Request a Quote

For a ZTC3015 Right-Angle 2-Vertical Power Socket quotation, send your required configuration and harness information for technical confirmation.
