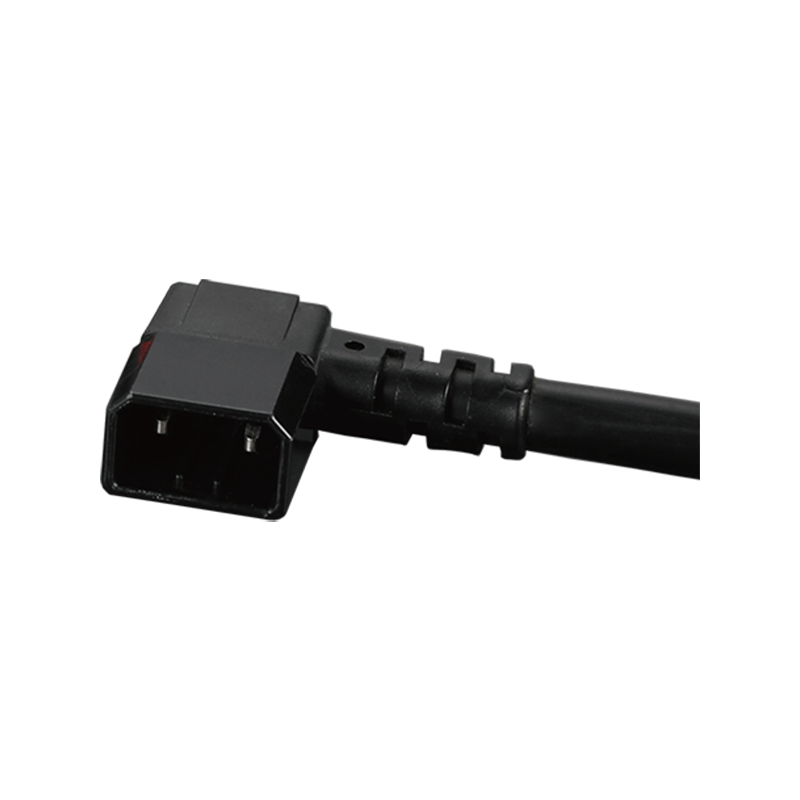

ZTC3012 2-Vertical Right-Angle Power Plug

Key Features

The right-angle body is intended for equipment layouts with limited forward cable clearance.

The connector family offers two-, three-, and four-contact arrangements for different circuit needs.

A molded cable outlet provides a finished connection point for harness production and replacement cables.

Applications

The ZTC3012 2-Vertical Right-Angle Power Plug is suitable for compact electrical equipment, charging devices, portable power units, and harness assemblies where the cable needs to follow the side of the equipment. It is important to confirm the required contact configuration before ordering.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirement for quotation.

FAQ

Q1: Why choose a right-angle plug?
A right-angle plug routes the cable alongside the connector body and can reduce the forward clearance needed at the connection point.

Q2: Which contact configurations are available?
The product family provides 2-pin, 3-pin 2+1, and 4-pin 2+2 options.

Q3: Can this plug be used in a replacement harness?
Yes, provided that the required interface, contact configuration, wire range, and equipment circuit are confirmed.

Q4: Does the ZTC3012 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send the required contact version, cable details, quantity, and equipment application for a quotation.
