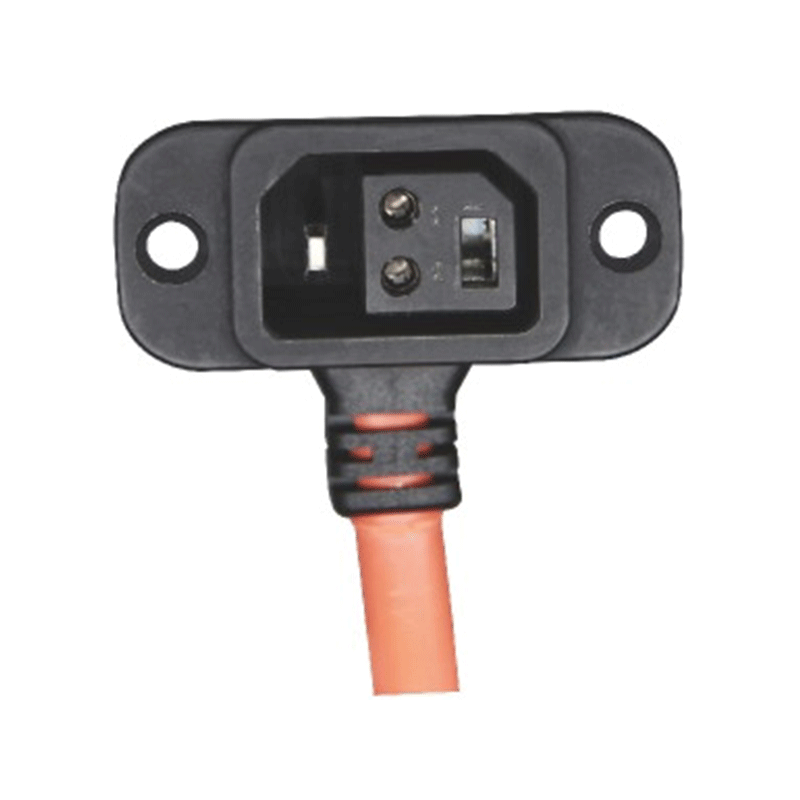

ZTC6028 1+1+2 Panel-Mount Battery Socket

Key Features

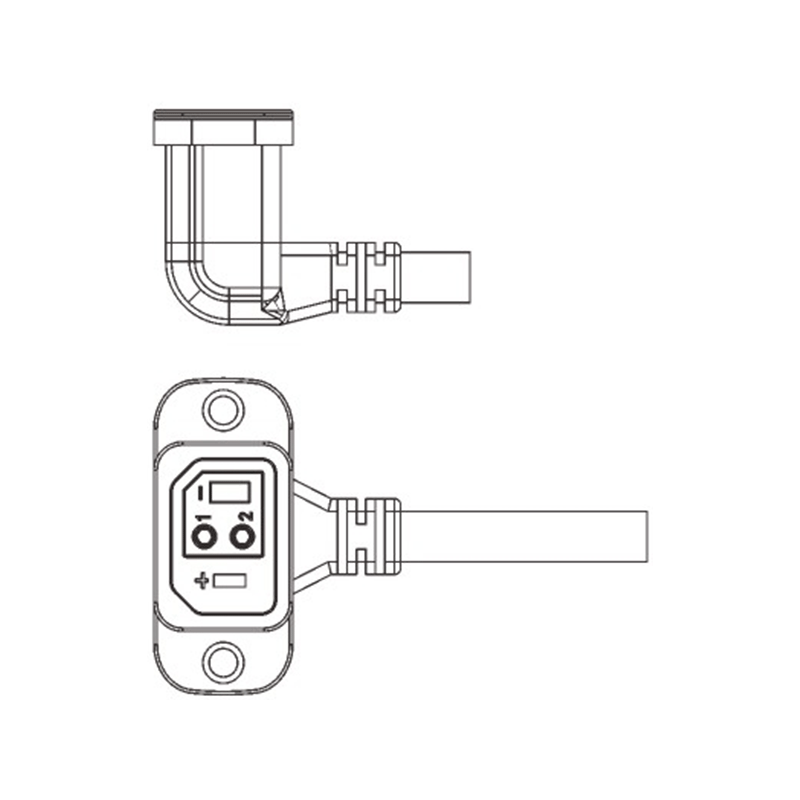

The panel-mount flange provides an installation point on a battery case or equipment enclosure.

The cable exits from the rear of the socket body, allowing the connection to be routed into internal wiring.

Two power contacts and four signal contacts are integrated into one compact battery socket interface.

The open socket face is suitable for equipment that requires regular connection access.

Applications

This Panel-Mount Battery Socket is suitable for battery packs, charging equipment, portable electrical units, and equipment enclosures that need an accessible battery power and signal interface. It is suited to projects where the socket is fixed to the equipment while the cable is routed internally.

Ordering & Quotation Information

For the ZTC6028 1+1+2 Panel-Mount Battery Socket, please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What does panel-mount mean for the ZTC6028?
It means the socket is fixed to an equipment panel or enclosure through its mounting flange.

Q2: Where does the cable exit from this socket?
The cable exits from the rear of the socket body for internal harness routing.

Q3: Can this socket carry power and signal contacts together?

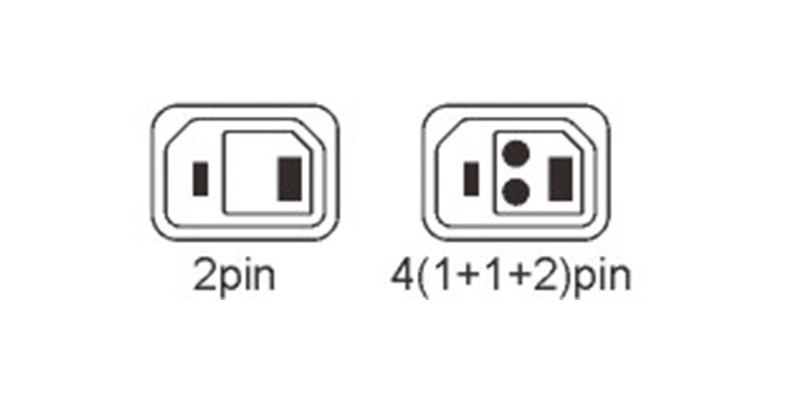

Yes. It includes separate two-pin and four-pin contact interfaces.

Q4: Does the ZTC6028 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your panel drawing, wire details, intended equipment, and required quantity for model confirmation and a quotation.
