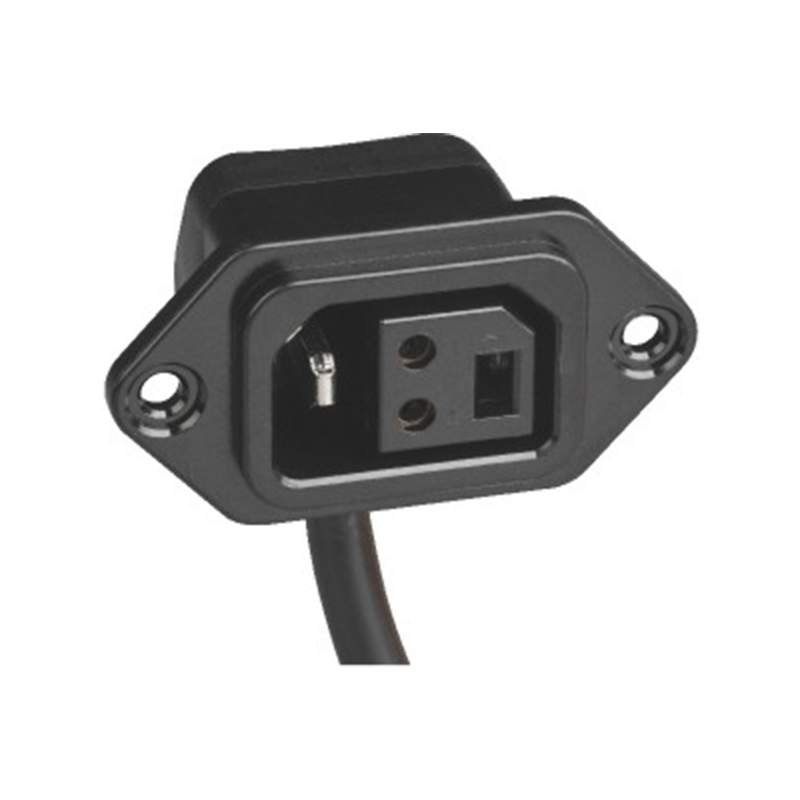

ZTC6016 1+1+2 Right-Angle Battery Socket

Key Features

The right-angle cable exit keeps the harness closer to the equipment surface.

The socket combines two power contacts and four signal contacts in a single connection point.

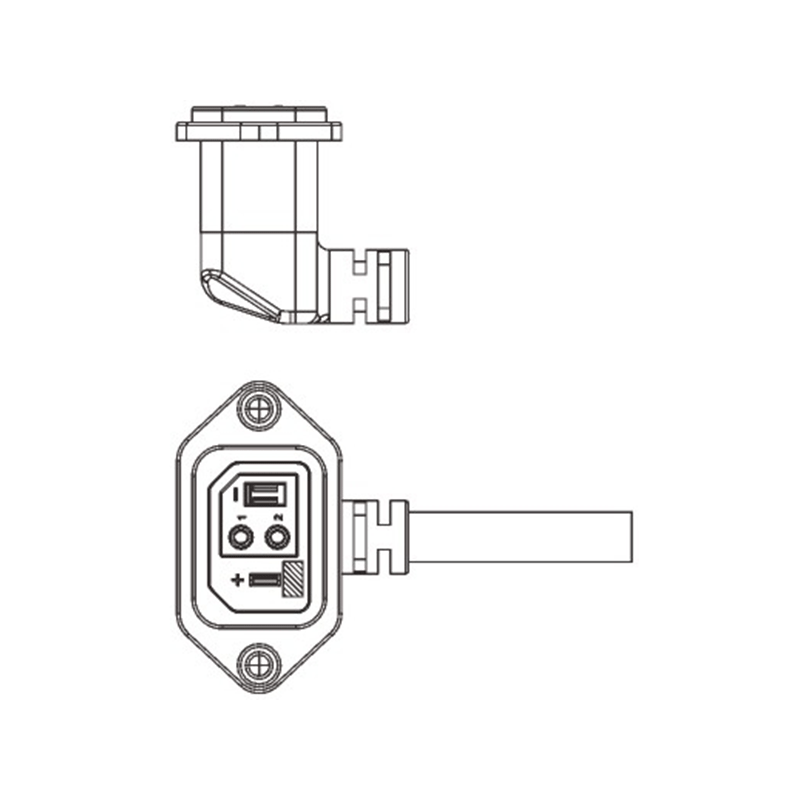

Its flange-style face provides a defined mounting interface for equipment housings and battery assemblies.

Applications

This Right-Angle Battery Socket is suitable for battery-powered devices, charging equipment, compact electrical units, and cable harnesses where a side cable exit is preferred. It provides a combined battery power and signal interface without requiring separate connector positions.

Ordering & Quotation Information

For the ZTC6016 1+1+2 Right-Angle Battery Socket, please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Why use a right-angle socket?
It routes the cable alongside the equipment instead of directly away from the connector face.

Q2: Can this socket be mounted on equipment?
Its flange-style face is designed for installation at an equipment connection point.

Q3: Can it combine battery power and signal contacts?

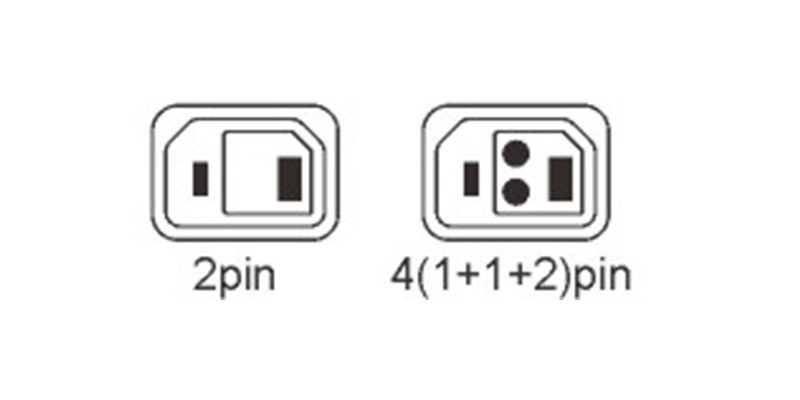

Yes. The connector includes separate two-pin and four-pin contact interfaces.

Q4: Does the ZTC6016 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your application drawing, wire specification, required quantity, and customization request for a quotation.
