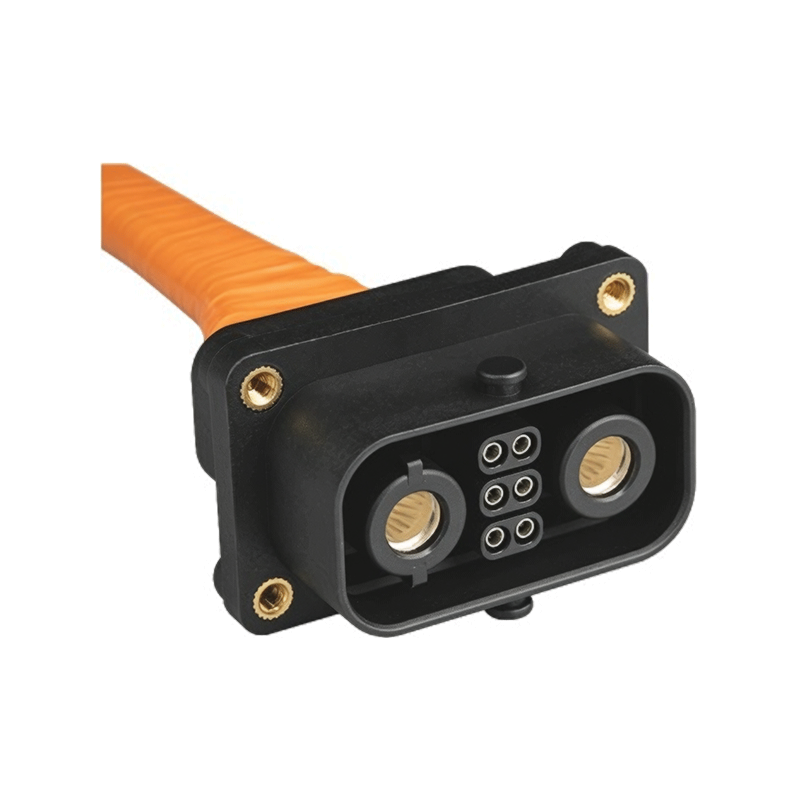

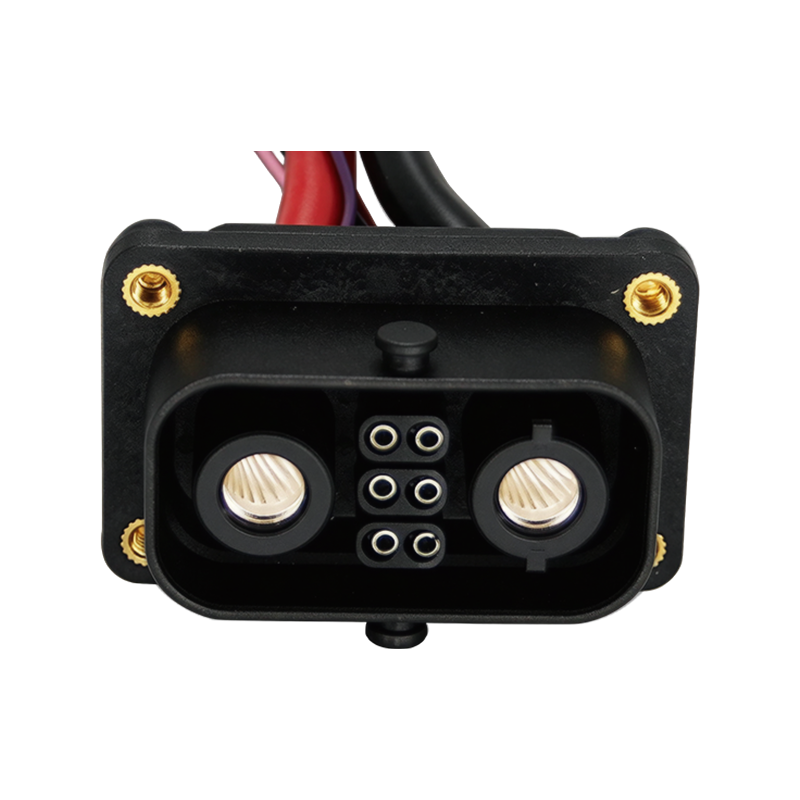

ZTC6037 2+6 High-Current Power Socket

Key Features

The integrated contact layout helps reduce the number of separate interfaces required between a harness and the equipment enclosure.

The socket structure provides a clear connection point for equipment manufacturers planning power and signal circuits within the same installation area.

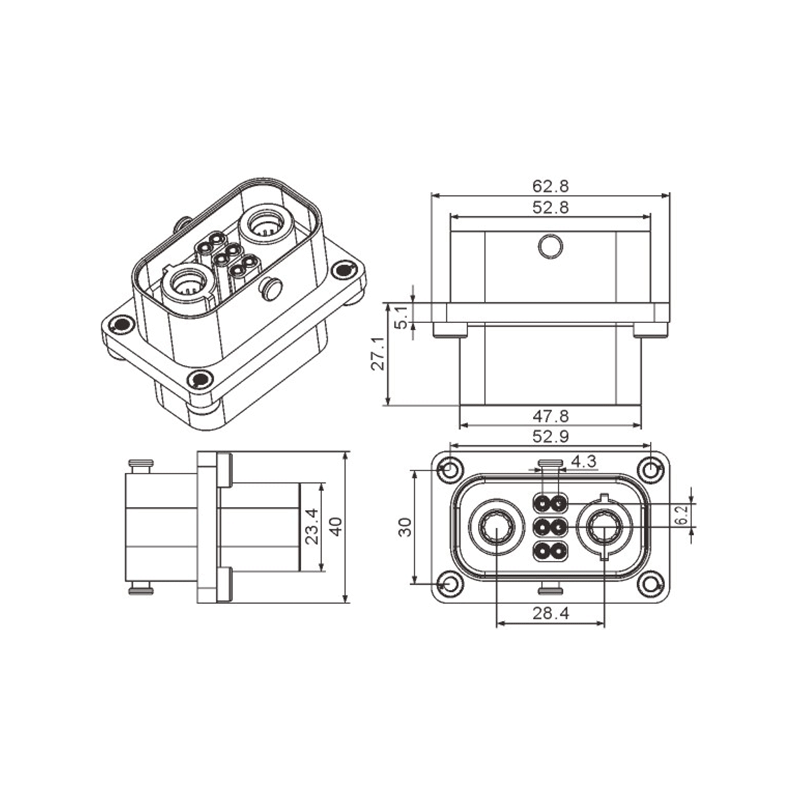

Its mounting-face design is suitable for integration into electrical housings and equipment panels according to the product drawing.

The locking connection method supports a stable interface during cable assembly and routine equipment operation.

Applications

The ZTC6037 2+6 High-Current Power Socket can be used in battery assemblies, energy storage equipment, industrial control devices, and electric mobility equipment requiring a combined power and signal interface. As a 2+6 pin power socket, it is suitable where the system design needs to consolidate power conductors and signal wires at one equipment-side connection location.

This high-current power socket can also be evaluated for custom cable-harness projects based on the required current and cable specification.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Can this socket carry both power and signal circuits?

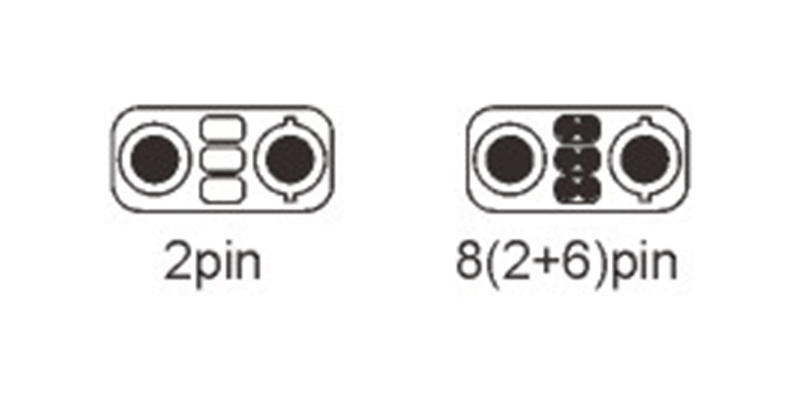

Yes. The 2+6 contact arrangement integrates two power contacts and six signal contacts in one interface.

Q2: Is this product suitable for equipment-side installation?
The product is an equipment-side power socket. Installation dimensions and enclosure requirements should be checked against the product drawing before production.

Q3: Can a cable harness be supplied with the socket?
Harness configuration includes cable gauge, wire length, terminal requirements, and application conditions.

Q4: What information is required before quotation?
Please provide the required current, cable specification, signal-wire requirement, expected quantity, and installation drawing, where available.

Request a Quote

For a high-current power socket project, please send the required current, cable and signal-wire specifications, expected quantity, and application drawing.
