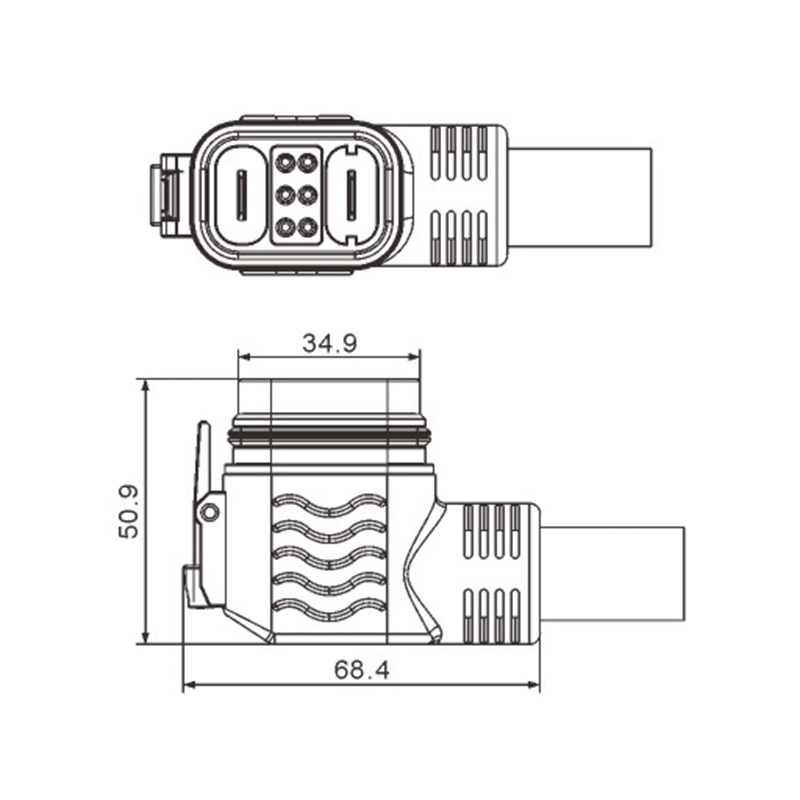

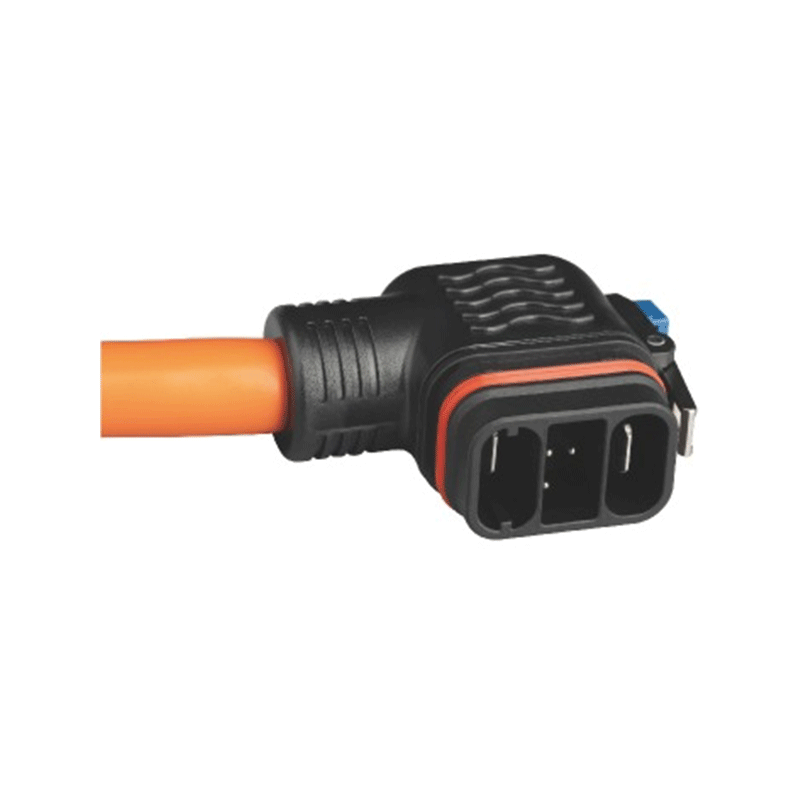

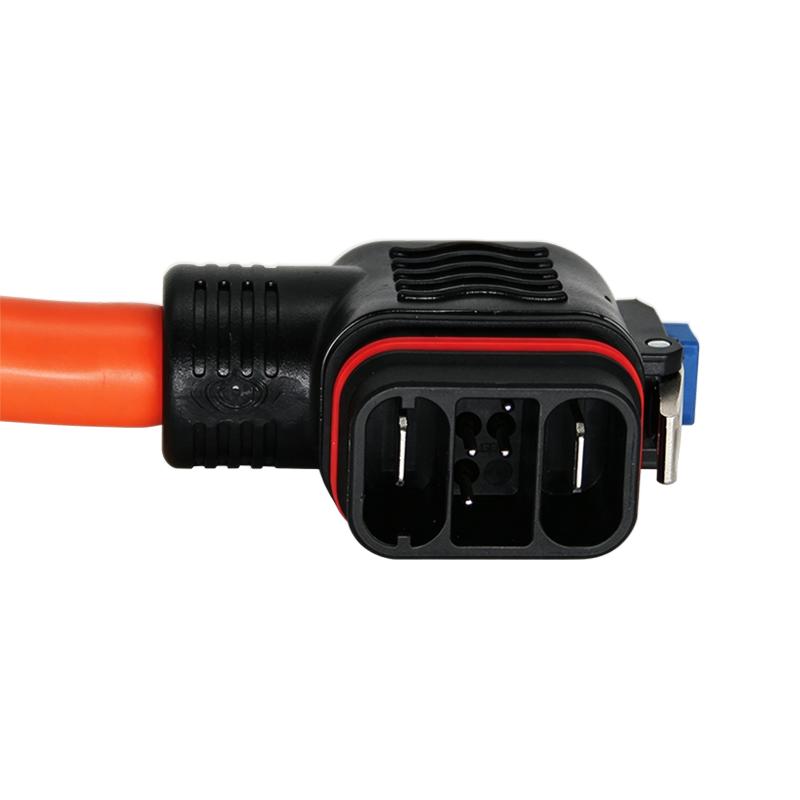

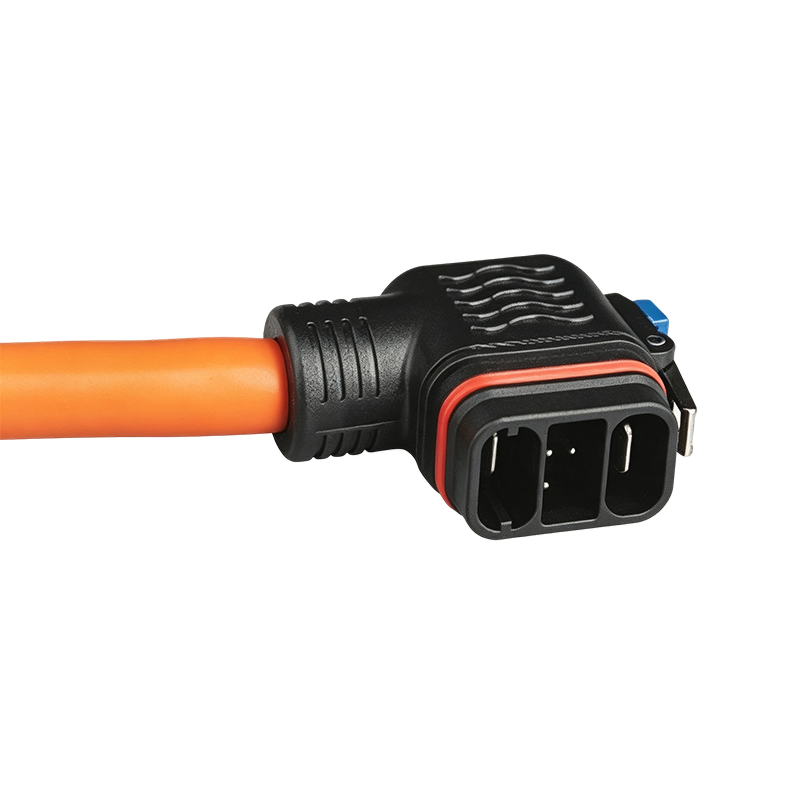

ZTC6017 2+6 High-Current Bent Power Plug

The ZTC6017 2+6 High-Current Bent Power Plug is a cable-side power connector with two power contacts and six signal contacts. It is designed for electrical systems that need to integrate high-current transmission and signal wiring within one harness interface.

The bent power plug structure changes the cable exit direction from the connector face, supporting cable routing where a straight cable exit is not preferred. Its locking plug connection provides a defined connection method for the assembly.

Inquiry Now
PREV：ZTC6018 2+6 High-Current Power Socket NEXT：ZTC6037 2+6 High-Current Power Socket
  • Product Details
  • Parameter

Key Features

The bent cable exit helps guide the harness along the available installation path and can reduce unnecessary cable bending near the connector interface.

The combined power-and-signal layout supports a more compact harness architecture than using separate power and signal connectors.

The cable-side construction is suitable for use in harness assemblies requiring a designated plug-end connector.

The locking structure supports consistent connector engagement during installation and servicing.


Applications

The ZTC6017 2+6 High-Current Bent Power Plug is suitable for battery systems, industrial electrical equipment, energy storage devices and electric mobility applications requiring combined power and signal circuits. As a 2+6 pin power connector, it suits cable routes that require a bent power-plug form.

This high-current power connector is suitable for harness projects that need to organize high-current conductors and signal wires through one connection interface.


Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.


FAQ

Q1: Can the ZTC6017 carry both power and signal circuits?

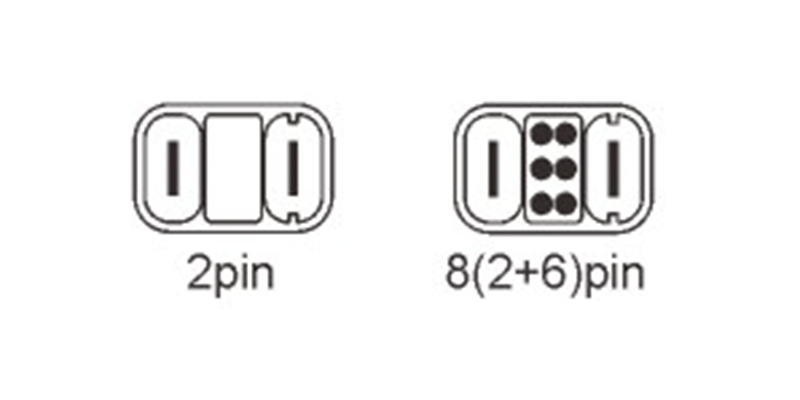

Yes. It provides two power contacts and six signal contacts in one connector interface.

Q2: When is a bent power plug appropriate?
It is suitable when the cable needs to exit in a different direction from the connector face and the available installation layout should be considered.

Q3: How is the plug secured after connection?
The ZTC6017 uses a locking plug connection mode. Matching cable and installation conditions form part of the production configuration.

Q4: Can this plug be supplied with a cable harness?
Cable-harness configuration includes wire gauge, cable length, terminal processing and quantity.


Request a Quote

For a high-current power plug project, please provide the required current, cable gauge, harness length, signal-wire requirements, quantity, and application drawing.
