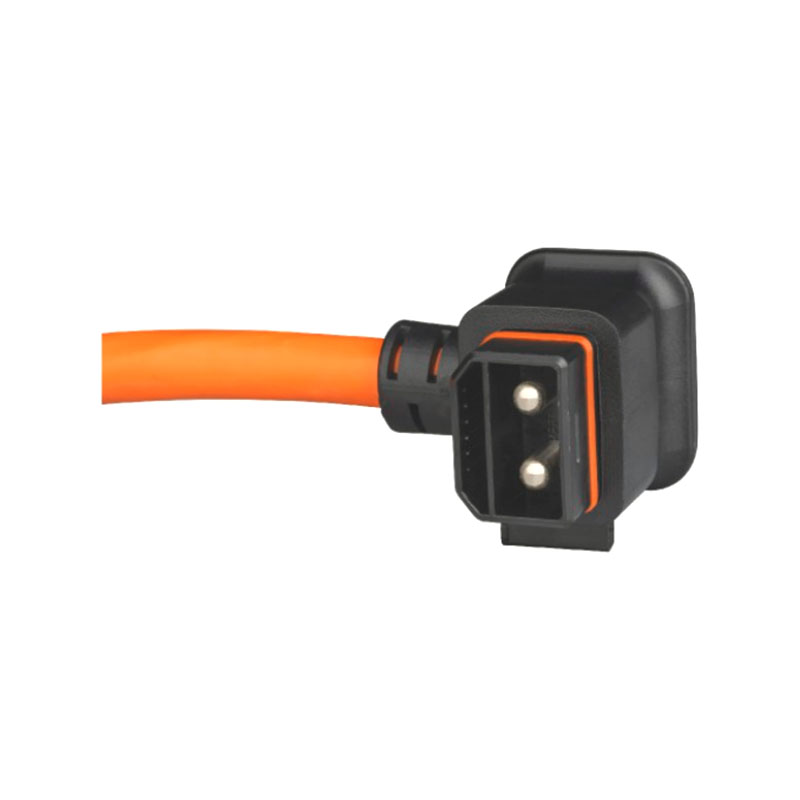

ZTC4008 2+7 Right-Angle High-Current Power Plug

Key Features

The 90-degree cable exit supports harness routing along equipment surfaces and around adjacent components.

The integrated power-and-signal arrangement helps avoid separate connector positions for the two circuit functions.

The housing profile is suited to cable-side installation where the connector orientation is determined by the equipment layout.

The quick plug connection provides a defined plug-in method for harness assembly and servicing.

Applications

The ZTC4008 2+7 Right-Angle High-Current Power Plug can be considered for industrial electrical equipment, battery systems, energy storage devices, and electric mobility harnesses. As a 2+7 high-current power connector, it is appropriate where the cable needs to leave the interface at a right angle.

The right-angle high-current power plug can help align the harness with the available cable route inside a compact electrical assembly.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Does the ZTC4008 integrate power and signal circuits?

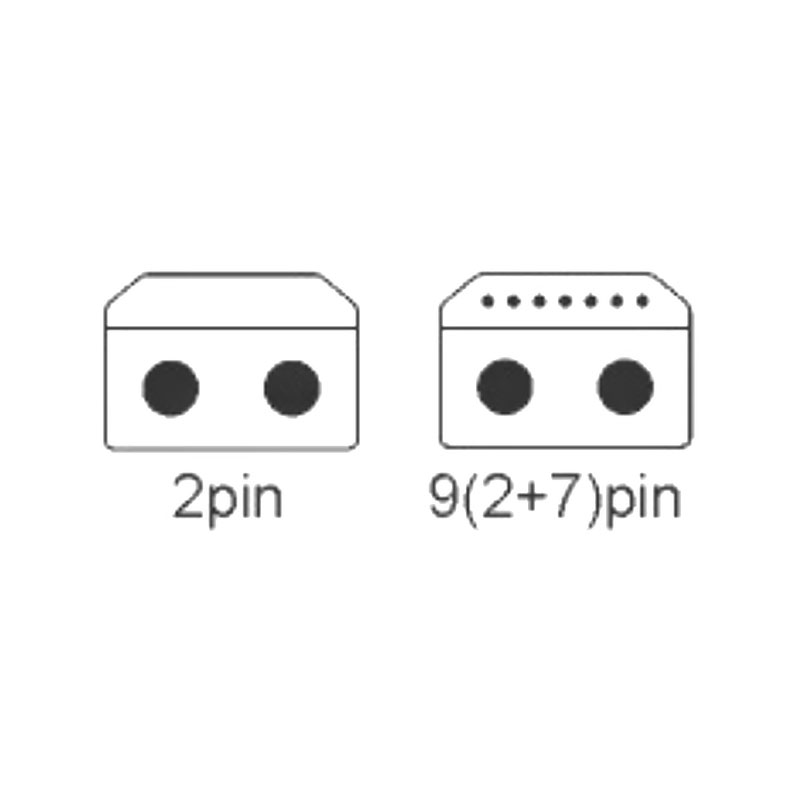

Yes. The connector includes two power contacts and seven signal contacts.

Q2: Why select a right-angle cable exit?
It is suitable when the cable route needs to follow the side of the enclosure or change direction immediately after the connector interface.

Q3: How is the connector connected?
The product uses a quick plug connection mode. Cable compatibility and installation conditions form part of the production configuration.

Q4: Can the cable assembly be customized?
The production configuration includes cable gauge, length, signal-wire arrangement, and terminal processing.

Request a Quote

For a right-angle high-current power plug project, please send the required current, cable specification, expected quantity, and application drawing.
