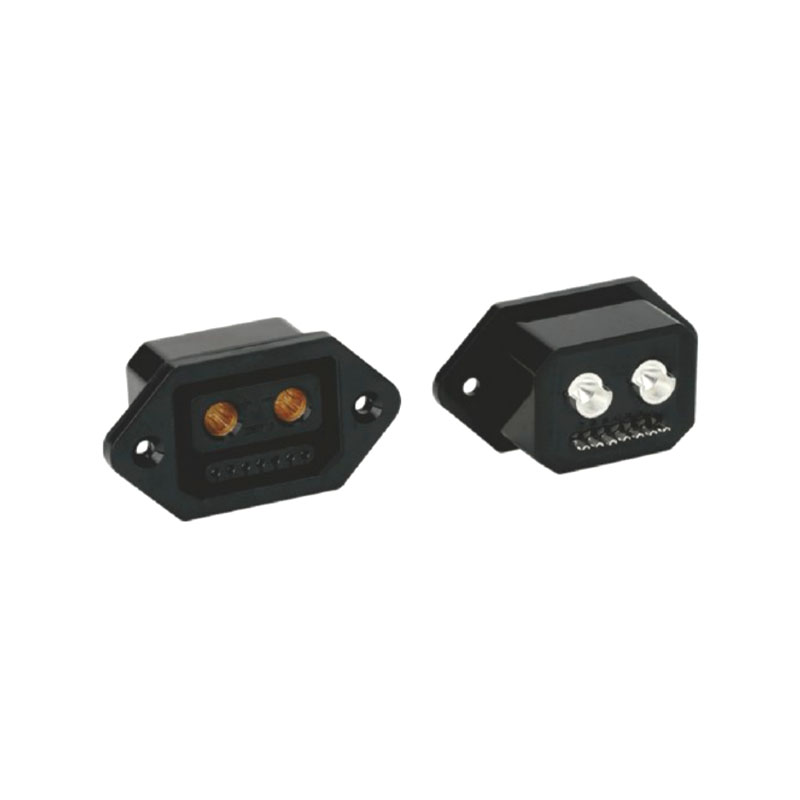

ZTC4004 2+7 Panel-Mount High-Current Power Socket

Key Features

The mounting flange helps position the socket on an equipment panel according to the product drawing.

The exposed connection face provides a defined interface for equipment that requires regular harness connection and disconnection.

The combined power-and-signal arrangement supports enclosure layouts with limited connector positions.

The quick plug connection method is suited to systems that need a direct harness-to-equipment interface.

Applications

The ZTC4004 2+7 Panel-Mount High-Current Power Socket is suitable for battery equipment, industrial control enclosures, energy storage systems, and electric mobility devices requiring a fixed power and signal connection point. As a 2+7 power socket, it can be used where the harness connects to a panel-mounted interface.

This high-current power socket is suitable for equipment layouts requiring a clear mounting location and an accessible connection face.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is the ZTC4004 intended for panel installation?

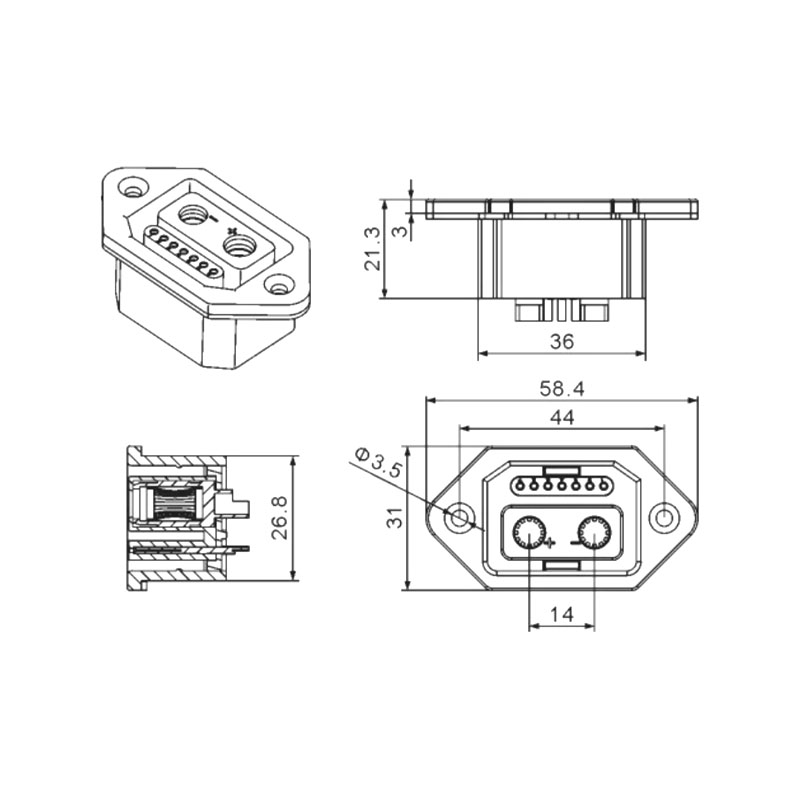

Yes. Its housing includes a mounting flange and fixing points. The installation dimensions should be checked against the product drawing.

Q2: Can this socket carry both power and signal circuits?

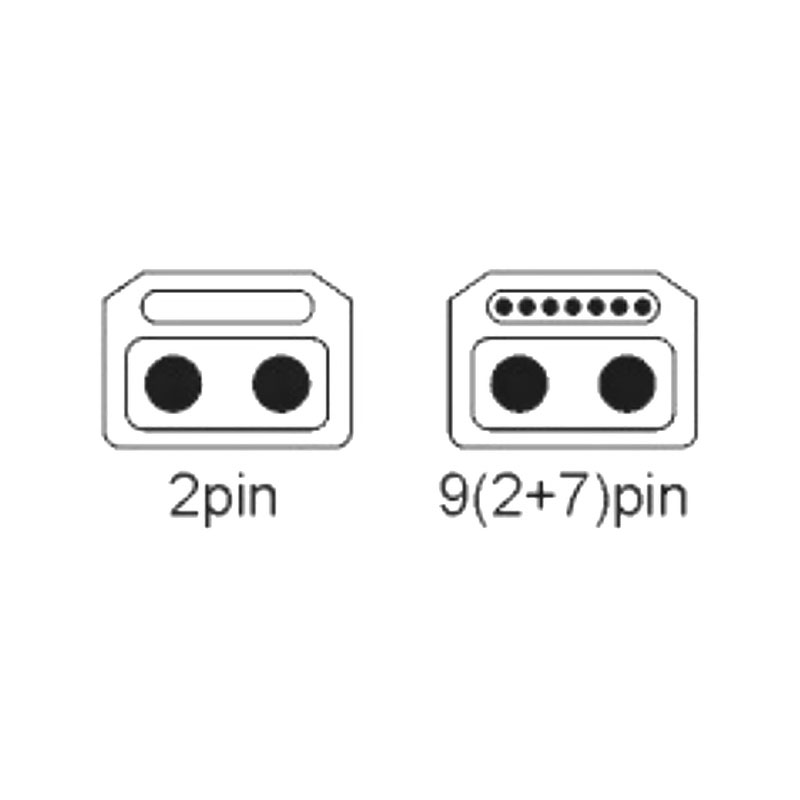

Yes. It integrates two power contacts and seven signal contacts in one interface.

Q3: Is the connection protected by a cover?
This model is supplied as an open panel-mount socket.

Q4: Where cover protection is required, the installation design should be evaluated accordingly. Can a harness be supplied with the socket?
Cable-harness configuration includes wire gauge, cable length, terminal requirements, and project quantity.

Request a Quote

For a panel-mounted high-current power socket project, please provide the required current, cable specification, installation drawing, and expected quantity.
