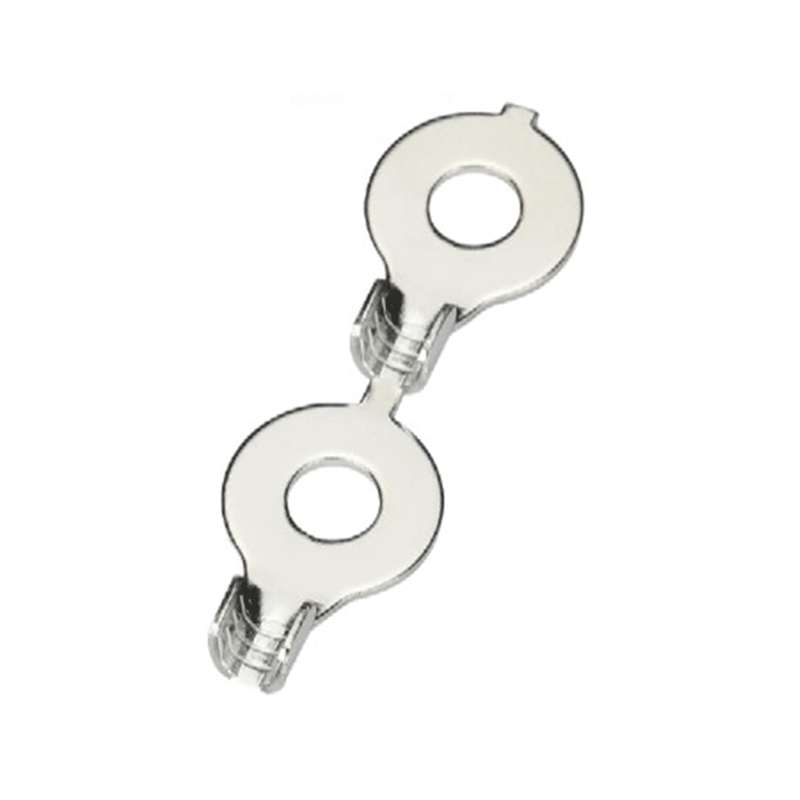

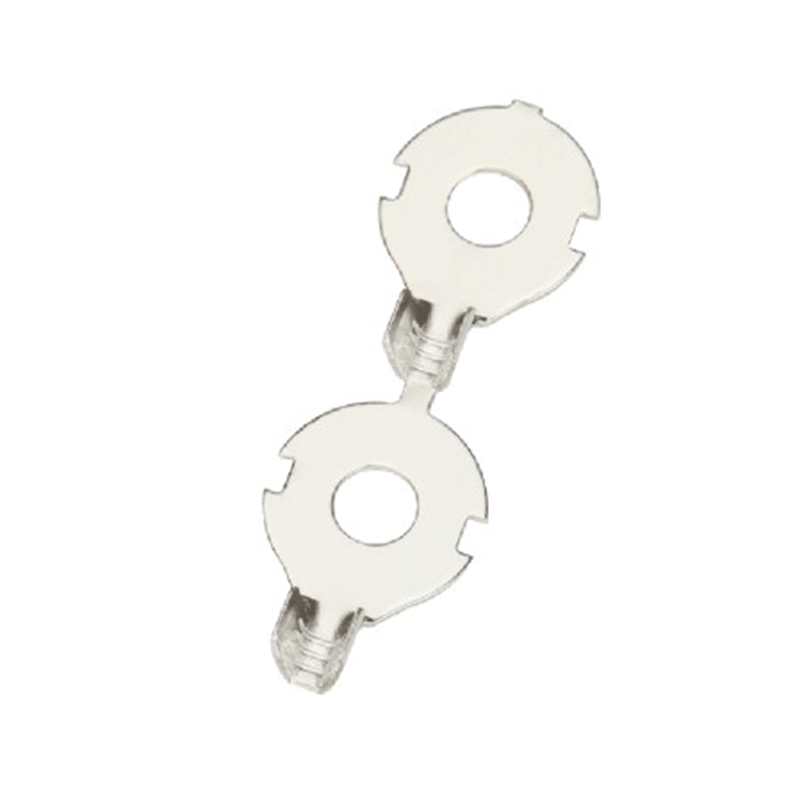

DJ431-B5BC Ring Tongue Terminal Series

Key Features

Two listed tongue-width profiles support different mounting-space requirements.

Straight-chain supply supports terminal-processing applications.

The series includes 3.0-4.0 mm² and 4.0-6.0 mm² conductor options.

Applications

Industrial wiring, power-control assemblies and cable-harness processing that require a straight-chain ring terminal with a 5.4 mm mounting hole.

Ordering & Quotation Information

Please provide the required B5BC profile, conductor range, thickness, terminal width and quantity.

FAQ

Q1: What wire sizes are listed?
The B5BC family includes 3.0-4.0 mm² and 4.0-6.0 mm² options.

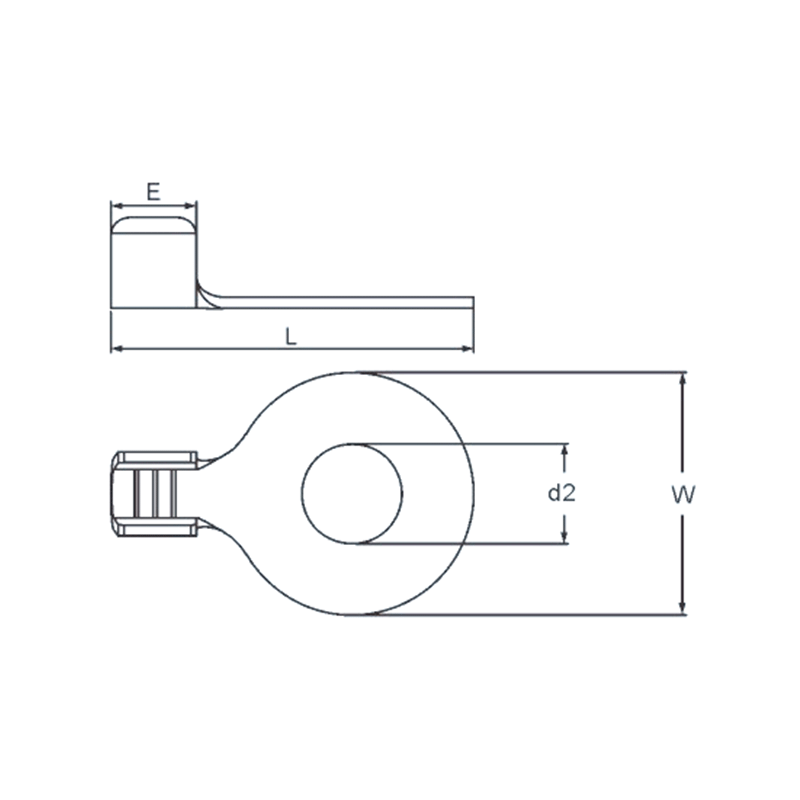

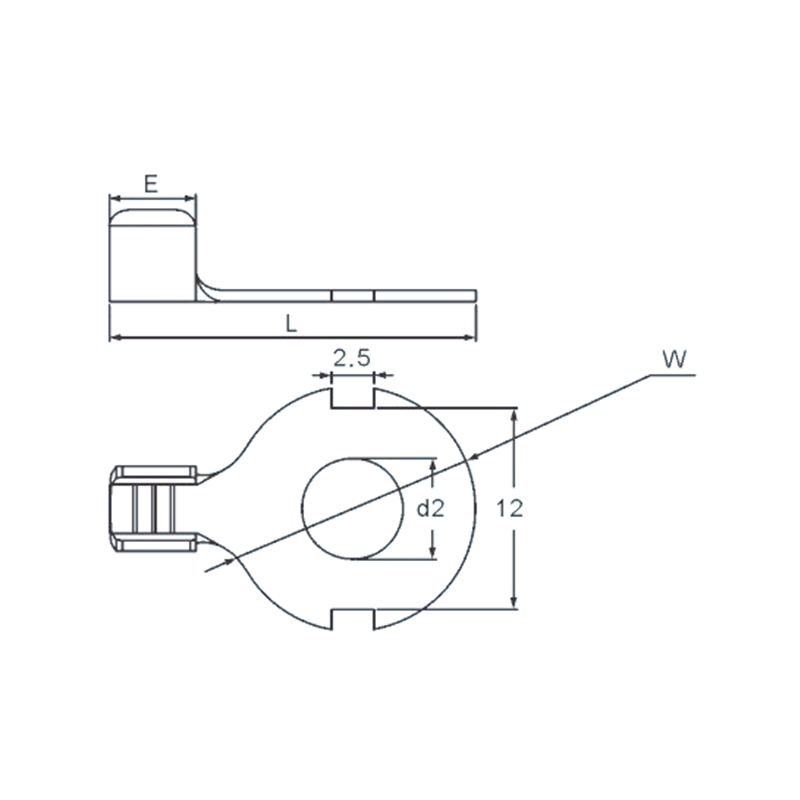

Q2: Which terminal widths are listed?
The catalogue shows 13 mm and 14.5 mm profiles.

Q3: What is the ring-hole diameter?
The listed ring-hole diameter is 5.4 mm.

Q4: What supply format is used?
The series is listed in straight-chain format.

Request a Quote

Please send the required part number, conductor range, mounting-hole requirement, supply format and order quantity for the DJ431-B5BC Ring Tongue Terminal Series. We will confirm the applicable configuration and quotation.
