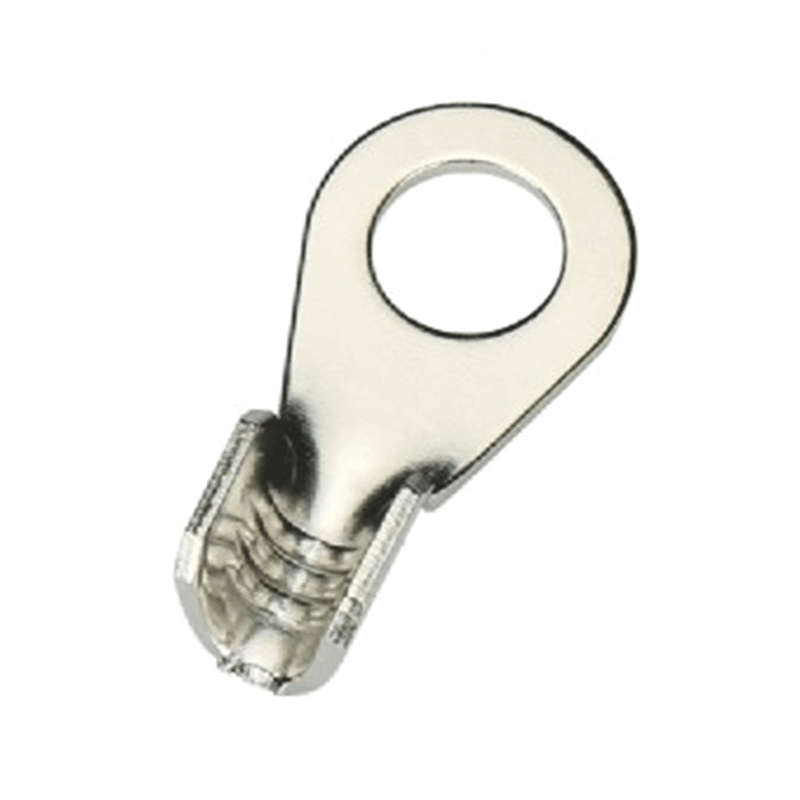

DJ431-B5.4B Ring Tongue Terminal

Key Features

The 5.4 mm ring hole is suited to the listed fixed mounting configuration.

Loose-piece supply supports individual terminal application.

Three listed material and surface combinations use the same terminal profile.

The 0.8 mm terminal thickness suits the stated conductor range.

Applications

Electrical equipment wiring, cable assemblies and control connections using a fixed 5.4 mm screw or stud mounting point.

Ordering & Quotation Information

Please provide the required material and surface option, conductor size, quantity and packaging requirement.

FAQ

Q1: What wire range is listed?

The terminal is listed for 3.0-4.0 mm² conductors.

Q2: What is the ring-hole diameter?

The ring-hole diameter is 5.4 mm.

Q3: Are different finishes available?

Yes. The catalogue lists bright tin-plated and nickel-plated options.

Q4: How is the terminal supplied?

It is supplied as a loose-piece terminal.

Request a Quote

Send the required material option and order quantity for the DJ431-B5.4B Ring Tongue Terminal. We will confirm the applicable configuration and quotation.
