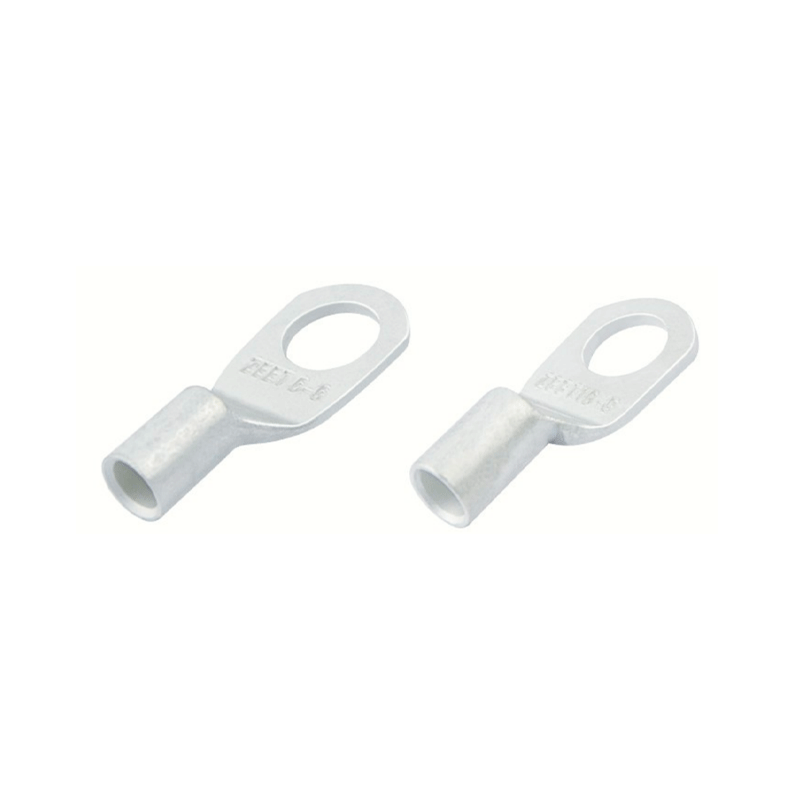

DTGA Cold-Pressed Copper Connecting Terminal Series-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

The closed-ring structure supports fixed bolt or stud connections.

Copper terminal bodies with tin plating are used for the conductive connection section.

Multiple terminal sizes cover different cable cross-sections and mounting requirements.

The uninsulated design is suitable for power wiring assemblies requiring separate insulation or protection methods.

Applications

Power-distribution wiring Battery cable assemblies Electrical control equipment Industrial machinery connections Vehicle power systems.

Ordering & Quotation Information

Please provide the cable cross-section, required mounting-hole size, selected SC part number, terminal dimensions, and quantity. We can confirm the suitable copper connecting terminal version.

FAQ

Q1: What cable sizes are available?
The listed DTGA series covers 4–50 mm² cable sizes, depending on the selected terminal version.

Q2: Is this terminal insulated?
No. It is supplied as an uninsulated copper terminal.

Q3: What mounting-hole sizes are available?
Available ring-hole sizes range from 4.3 mm to 13.0 mm, depending on the part number.

Q4: What is needed for quotation?
Please provide the cable size, mounting requirement, selected part number, and purchasing quantity.

Request a Quote

Send your cable and mounting requirements for the DTGA Cold-Pressed Copper Connecting Terminal Series. We will confirm the suitable model and provide a quotation.

Company

Zhejiang Zhente Technology Co., Ltd.

Zhejiang Zhente Technology Co., Ltd. specializes in new energy components, with applications in energy storage batteries, new energy vehicles, cloud servers, aerospace, telecommunications and electrical fields.
As a national high-tech enterprise, we participated in drafting national standards for electric vehicle electrical safety, and hold provincial-level industrial design and technology research center status, as well as "Specialized, Refined, Differential, and Innovative" recognition. We operate independent mold design, automation equipment design, and experimental centers.

Certificate Of Honor

News

New website is online!
27 Jul, 2026
We are pleased to announce that the official website of Zhejiang Zhente Technology Co., Ltd. is now online. Here, you can find our latest product information, service introductions, industry trends, a...
READ MORE
2 Pin Waterproof Auto Connector Kit - Male & Female Plug with Terminals & Seals
27 Jul, 2026
This 2 Pin Waterproof Automotive Connector Kit is a complete, ready-to-use solution for secure, weatherproof electrical connections in automotive, motorcycle, marine, and outdoor machinery applicatio...
READ MORE
Principles of Electrical Connectors and Integrated Interconnect Components.
27 Jul, 2026
Electrical connectors and integrated interconnect components serve as the fundamental electromechanical backbone of modern electronic and electrical systems, undertaking the core function of establis...
READ MORE
Wide Applications of Terminal Blocks in Daily Life.
27 Jul, 2026
Introduction When we talk about electrical safety and circuit stability in daily life, terminal blocks are one of the most essential but easily overlooked components. As a core electrical connecting ...
READ MORE

Wire Splice & Copper Connecting Terminals Industry knowledge

Cooperate with us

Quick Links
Home Products Industry Support Company News Contact Us
Product Categories
Power Connectors Waterproof Wire-to-Wire Connectors Automotive Connectors Wire-to-Board Connectors Controller Connector Systems PCB Screw Terminal Blocks Fuse Holders Ring Tongue Terminals Cold-Pressed Terminals Connector Contacts
Contact Us

Telephone: +86-577-62965566

Email: sales@zeetzj.com

Add：No. 8 Panzhuyang Road, Yanjiang Industrial Park, Beibaixiang Town, Yueqing City, Zhejiang Province

X Facebook

Products News

Item	Specification
Series	DTGA / SC type
Product type	Copper connecting terminal
Terminal body	Copper
Plating	Tin
Insulation	None
Applicable wire range	4–50 mm², variant-dependent
Applicable wire gauges	AWG 12–1/0, variant-dependent
Maximum current	35A–230A, variant-dependent
Ring-hole sizes	4.3–13.0 mm, variant-dependent
Supply quantity	100–1,000 pcs/pack, variant-dependent
Certifications	CE, cULus, RoHS, CQC, IATF 16949, ISO

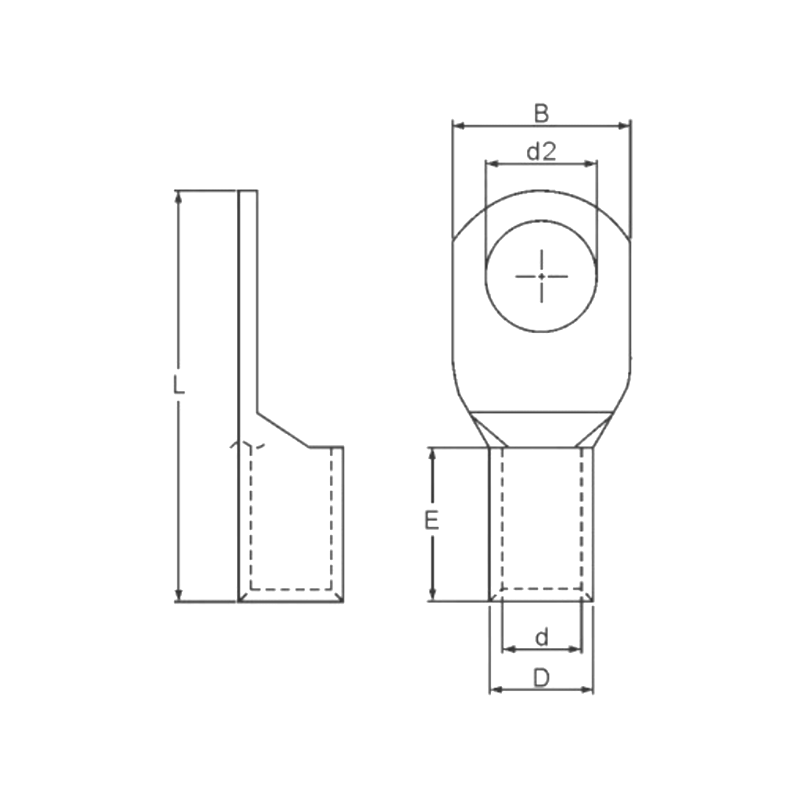

ITEM NO.	Dimension mm						PCS/PACK	EXPLANATION
ITEM NO.	d2	B	L	E	D	d	PCS/PACK	EXPLANATION
SC 4-4	4.3	8	19.5	7.2	4.5	32	1000	Wire range: 4mm² Max current:35A A.W.G: (12)
SC 4-5	5.2	8	20.5
SC 4-6	6.5	9.2	22
SC 4-8	8.5	12	23.5		4.6
SC 6-5	5.2	9.2	22	8	5.1	3.7	500	Wire range: 6mm² Max current:50A A.W.G: (10)
SC 6-6	6.5	9.8	23		5.1
SC 6-8	8.5	12	24		5.3
SC 6-10	10.3	12.8	24		5.3
SC 10-5	5.2	10.3	24	9	6.1	4.5	500	Wire range: 10mm² Max current:70A A.W.G: (8)
SC 10-6	6.5	12	24
SC 10-8	8.5	12	25
SC 10-10	10.3	13.2	26.5		6.3
SC 16-6	6.5	11	27.5	11	7.3	5.7	500	Wire range: 16mm² Max current:95A A.W.G: (6)
SC 16-8	8.5	12.5	29.5		7.3
SC 16-10	10.5	14	30		7.5
SC 25-6	6.5	13.1	32.5	13.5	9	7.2	250	Wire range: 25mm² Max current:125A A.W.G: (4)
SC 25-8	8.5	13.1	33
SC 25-10	10.5	14.5	34
SC 25-12	13	16.5	37
SC 35-6	6.5	15.8	36	14.5	10.8	8.5	200	Wire range: 35mm² Max current:170A A.W.G: (2)
SC 35-8	8.5	15.8	37
SC 35-10	10.5	15.8	38
SC 35-12	13	17.4	38
SC 50-6	6.5	18.1	41	17	12.5	9.8	100	Wire range: 50mm² Max current:230A A.W.G: (1/10)
SC 50-8	8.5	18.1	42.5
SC 50-10	10.5	18.2	44
SC 50-12	13	18.2	44
