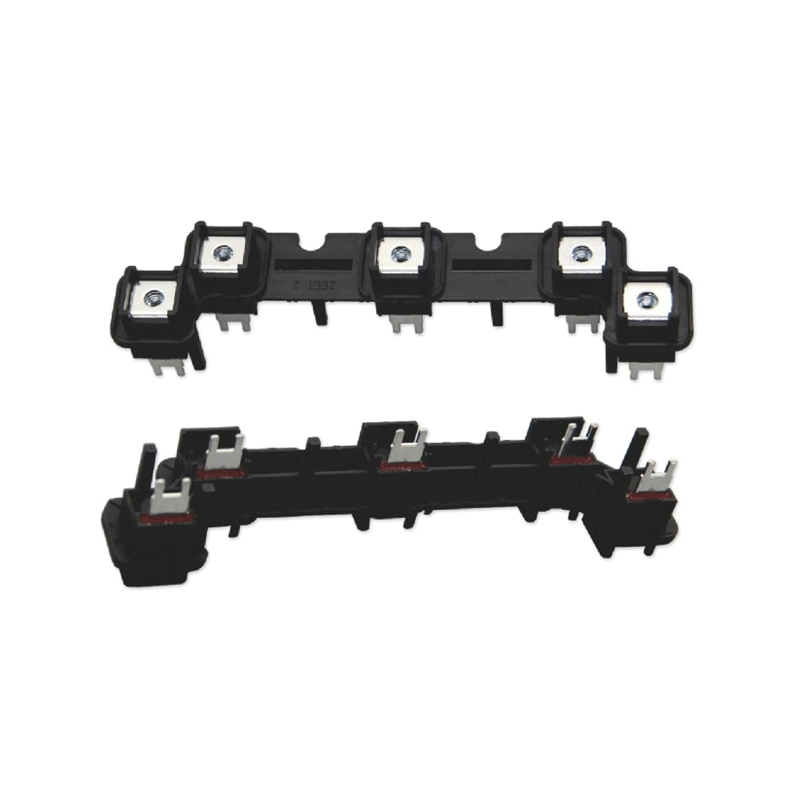

ZT3512-A 5-Pole M5 PCB Screw Terminal Block

Key Features

The shaped five-pole arrangement offers a more application-specific layout than a straight terminal strip.

M5 screw terminals provide a secure, familiar connection method for equipment assembly and service work.

The molded insulating body keeps adjacent connection points clearly separated.

Tin-plated brass conductive parts support stable contact performance in routine electrical applications.

Applications

Custom electrical control boards Compact power modules Battery connection assemblies Motor and actuator control equipment.

Ordering & Quotation Information

For an accurate quotation, please provide the PCB layout, conductor size, required current, and annual demand. The intended installation is the reference for sample review before volume production.

FAQ

Q1: What makes the ZT3512-A layout different from a standard straight terminal block?
Its five positions are arranged in a shaped configuration, making it useful where the board layout or cable route does not suit an in-line terminal arrangement.

Q2: Does this model use M5 screw terminals?
Yes. The ZT3512-A 5-Pole M5 PCB Screw Terminal Block uses M5 screw terminals.

Q3: Can you confirm whether it fits our PCB?
Yes. Send the PCB drawing or mounting dimensions and we can review fitment before quoting.

Q4: What information is needed for a custom order?
Please share the wire size, voltage requirement, PCB layout, and estimated quantity.

Request a Quote

Contact us with your application drawing for the ZT3512-A 5-Pole M5 PCB Screw Terminal Block. We can help confirm the configuration and prepare a project-based quotation.
