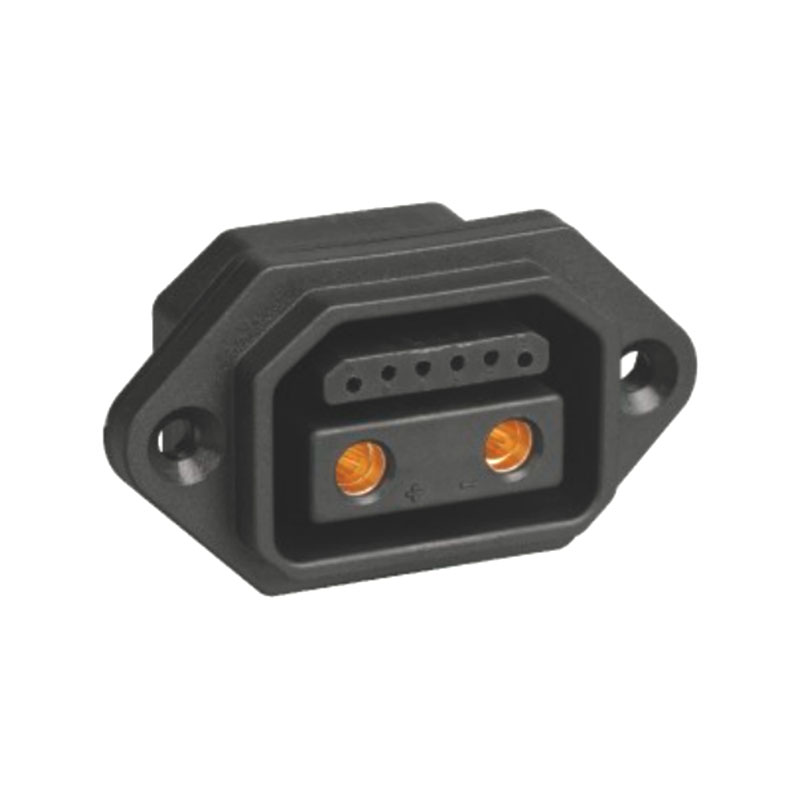

ZTC5034 2+6 Panel-Mount Power Socket

Key Features

The unwired socket form allows the equipment manufacturer to plan the rear-side connection according to the enclosure design.

The mounting flange provides a defined fixed position on the panel or equipment housing.

The combined power-and-signal contact arrangement supports one interface for the required circuit functions.

The quick plug connection mode provides a direct connection point for the cable-side assembly.

Applications

The ZTC5034 2+6 Panel-Mount Power Socket can be used in industrial electrical equipment, battery systems, compact control devices and other assemblies requiring a separate internal wiring arrangement. As a 2+6 power socket, it is suitable where the panel connector and internal wiring are specified independently.

The panel-mount connector is intended for equipment designs that require rear-side terminal access.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Does the ZTC5034 include an attached cable?
No. The product is supplied without wires, allowing the downstream wiring arrangement to be specified separately.

Q2: Is the product suitable for panel installation?

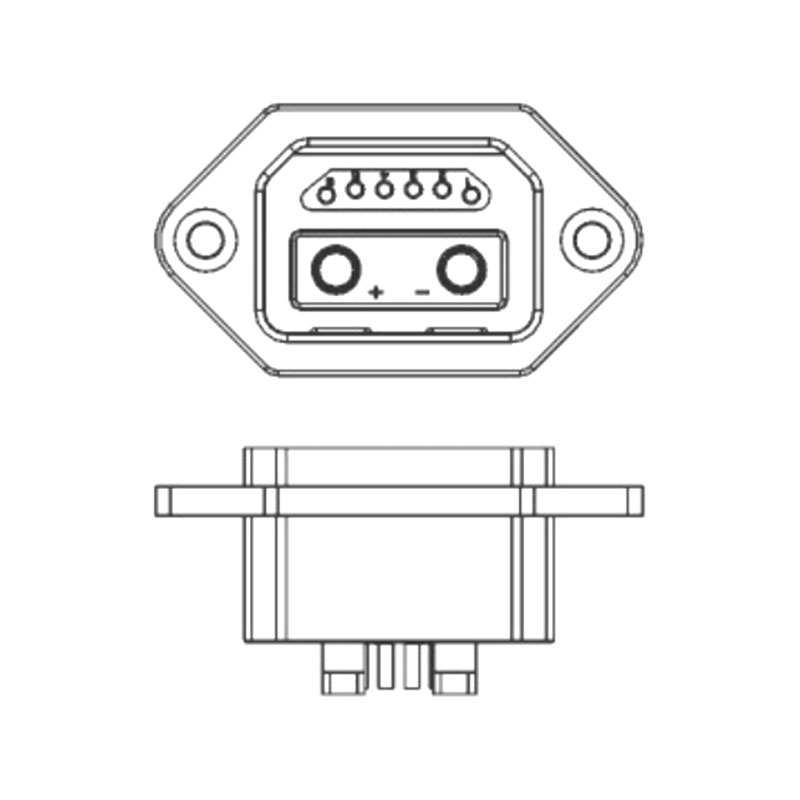

Yes. It has a mounting flange for installation into an equipment panel or housing. Please check the product drawing before production.

Q3: Can this socket carry both power and signal circuits?
Yes. It integrates two power contacts and six signal contacts in one connector interface.

Q4: Which details are required before quotation?
Please provide the required current, internal wiring arrangement, installation drawing, expected quantity and application conditions.

Request a Quote

For a panel-mount power socket project, please provide the required current, internal wiring arrangement, installation drawing, and expected quantity.
