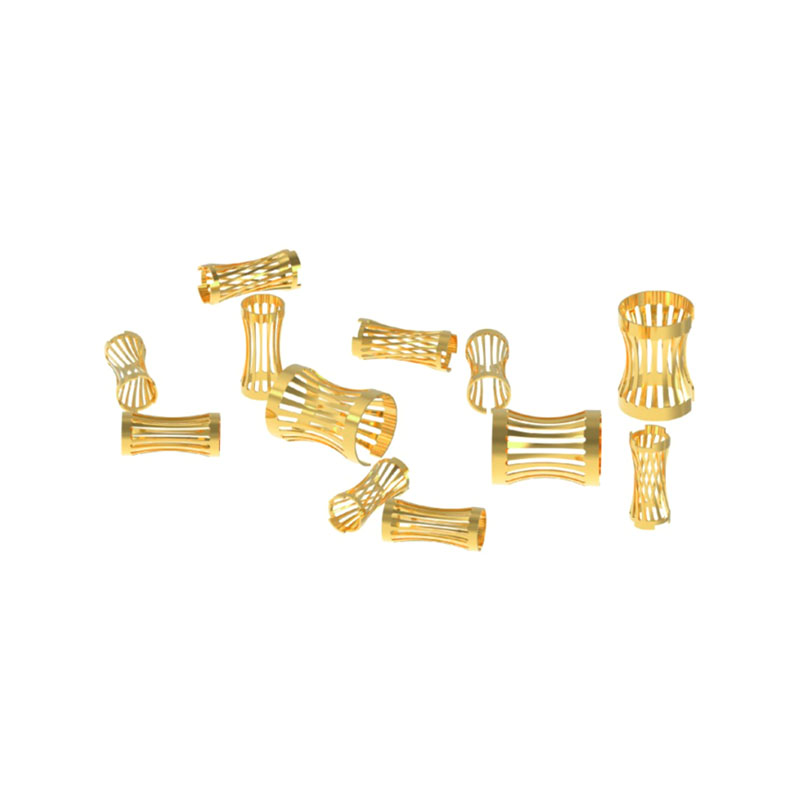

ZTT226 Crown Spring Terminal Series

Key Features

Multi-finger construction creates contact around the cylindrical mating interface.

Several size options are available for different mating-hole dimensions.

Beryllium copper is used for the spring-contact body.

Gold plating is applied to the listed contact surface.

Applications

Circular electrical connectors Power contact assemblies Control equipment connectors Custom electrical interconnects.

Ordering & Quotation Information

Please provide the required mating-pin or hole size, selected ZTT226 model, contact-current requirement, and order quantity. We can confirm the appropriate crown spring contact version.

FAQ

Q1: What is a crown spring contact used for?
It creates a multi-finger electrical contact around a cylindrical mating interface.

Q2: What mating sizes are available?

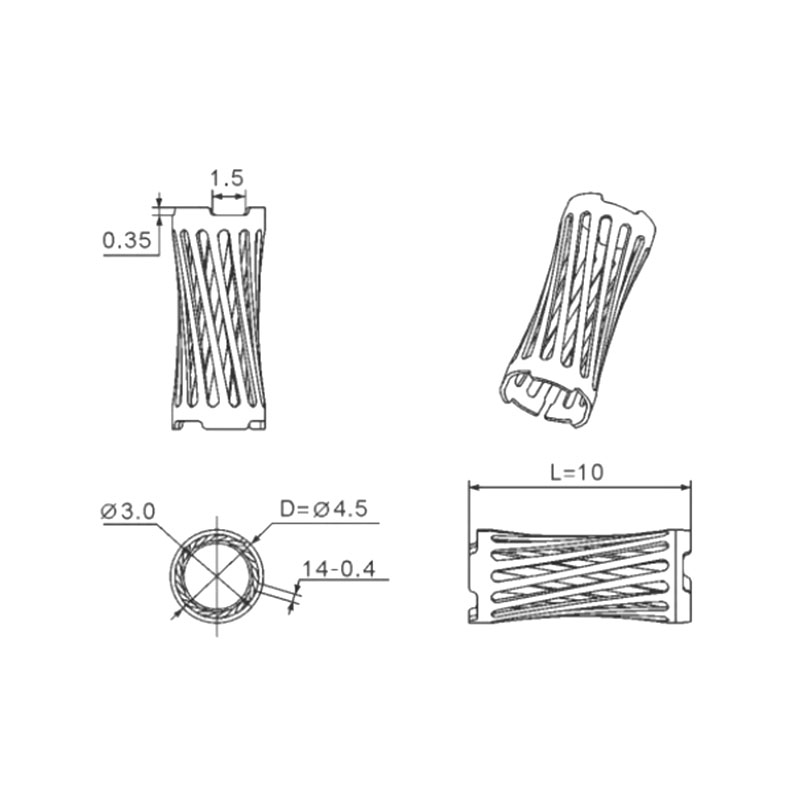

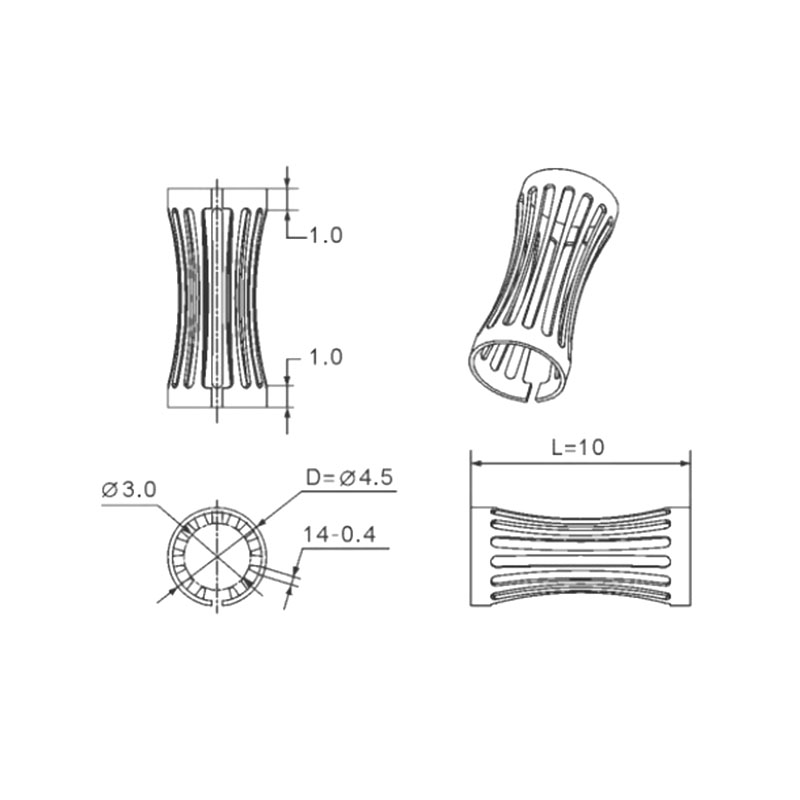

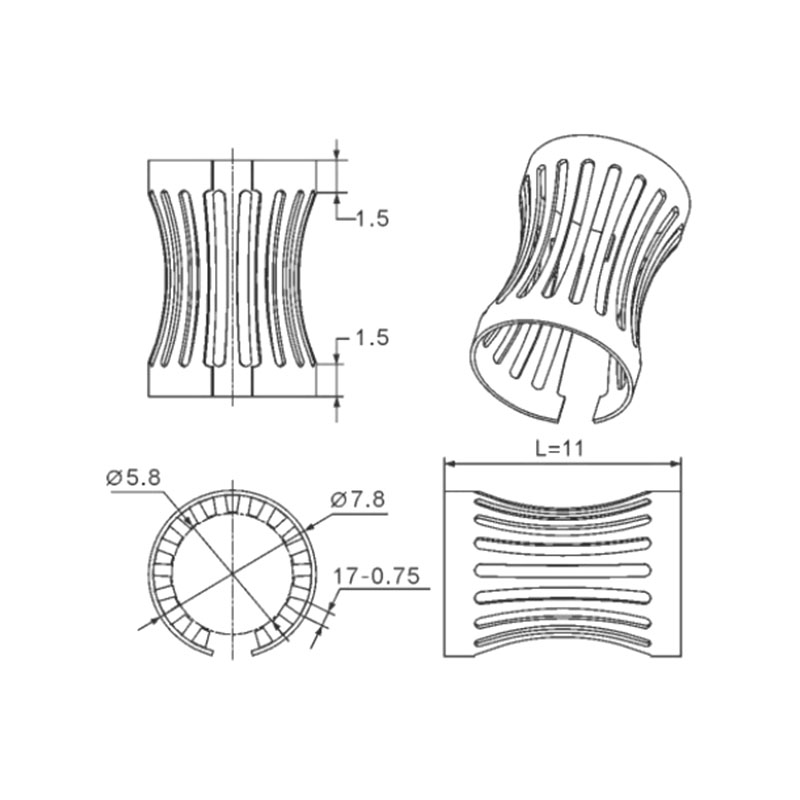

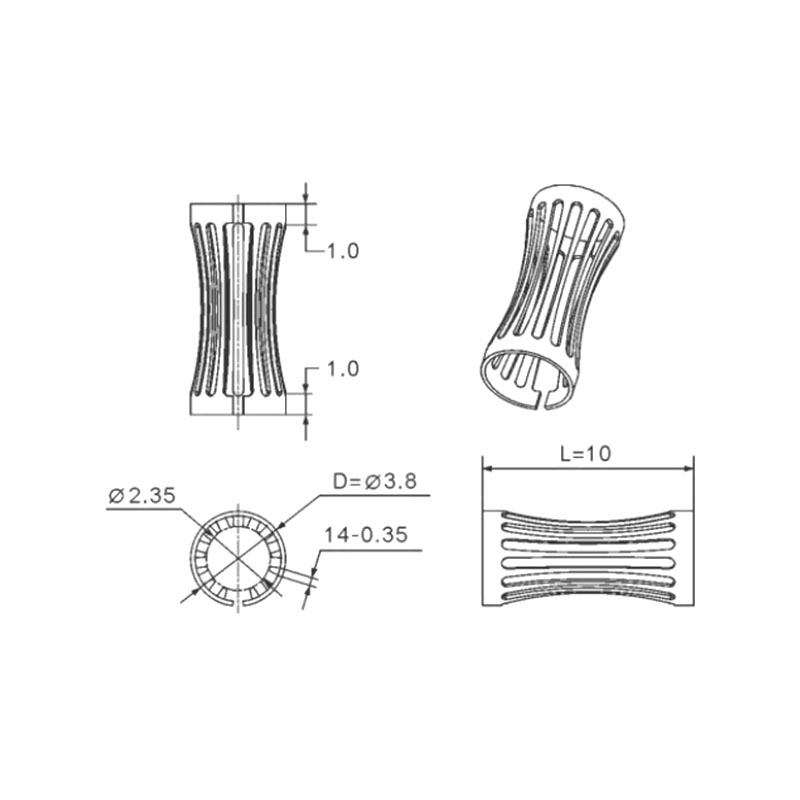

The listed ZTT226 Crown Spring Terminal Series includes versions for 3.0 mm, 3.4 mm, 4.5 mm, and 6.0 mm mating-hole sizes.

Q3: What material is used for the contact body?
The listed spring-contact body is beryllium copper with gold plating.

Q4: How do I select the correct version?
Please provide the mating dimension and required ZTT226 model for confirmation.

Request a Quote

Send your mating-interface requirements for the listed product. We will help select the appropriate contact size and provide a quotation.
