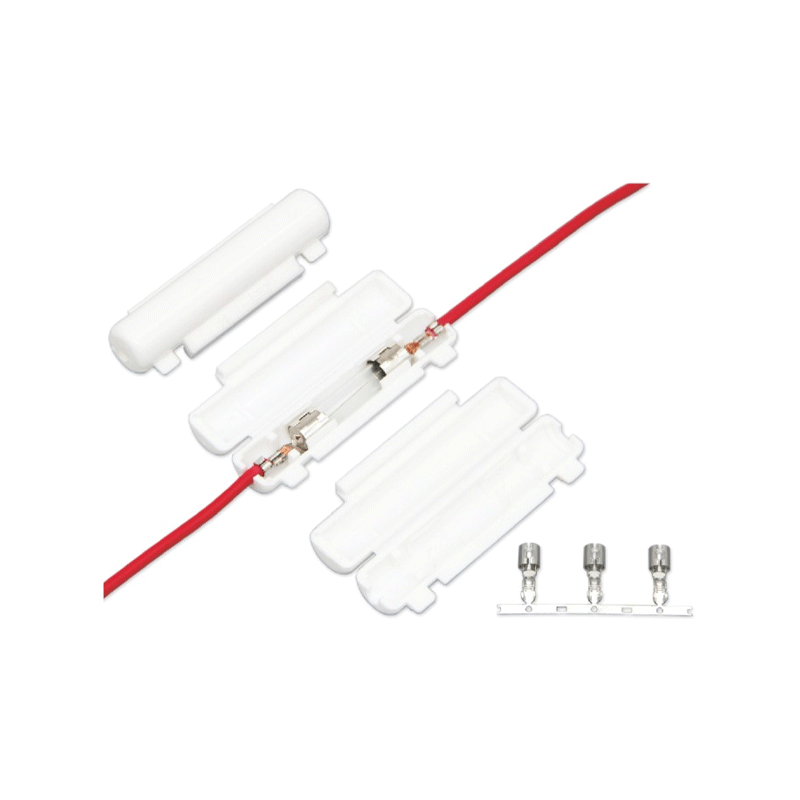

BX3013 Flip-Top 6×30mm Glass Fuse Holder-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

The hinged cover allows the fuse to be accessed without opening a threaded cap.

The holder is designed for 6×30 mm glass tube fuses.

Its longer body accommodates the larger glass-fuse format.

Phosphor bronze terminals with bright tin plating form the conductive contact components.

Applications

Power cable assemblies Appliance wiring Low-voltage electrical equipment Electronic control circuits.

Ordering & Quotation Information

Please provide the required fuse size, wire cross-section, cable length, and quantity. We can review whether the holder suits your cable assembly layout.

FAQ

Q1: What fuse size does the BX3013 Flip-Top 6×30mm Glass Fuse Holder use?
It is designed for a 6×30 mm glass tube fuse.

Q2: Is the holder intended for cable installation?
Yes. It is a flip-top in-line fuse holder for cable assemblies.

Q3: What material are the contact terminals made from?
The listed terminals are phosphor bronze with bright tin plating.

Q4: Can you review compatibility with our cable drawing?
Yes. Send the wire details and assembly drawing for review.

Request a Quote

Contact us with your application details for the listed product. We will confirm the suitable configuration and quotation.

Company

Zhejiang Zhente Technology Co., Ltd.

Zhejiang Zhente Technology Co., Ltd. specializes in new energy components, with applications in energy storage batteries, new energy vehicles, cloud servers, aerospace, telecommunications and electrical fields.
As a national high-tech enterprise, we participated in drafting national standards for electric vehicle electrical safety, and hold provincial-level industrial design and technology research center status, as well as "Specialized, Refined, Differential, and Innovative" recognition. We operate independent mold design, automation equipment design, and experimental centers.

Certificate Of Honor

News

New website is online!
27 Jul, 2026
We are pleased to announce that the official website of Zhejiang Zhente Technology Co., Ltd. is now online. Here, you can find our latest product information, service introductions, industry trends, a...
READ MORE
2 Pin Waterproof Auto Connector Kit - Male & Female Plug with Terminals & Seals
27 Jul, 2026
This 2 Pin Waterproof Automotive Connector Kit is a complete, ready-to-use solution for secure, weatherproof electrical connections in automotive, motorcycle, marine, and outdoor machinery applicatio...
READ MORE
Principles of Electrical Connectors and Integrated Interconnect Components.
27 Jul, 2026
Electrical connectors and integrated interconnect components serve as the fundamental electromechanical backbone of modern electronic and electrical systems, undertaking the core function of establis...
READ MORE
Wide Applications of Terminal Blocks in Daily Life.
27 Jul, 2026
Introduction When we talk about electrical safety and circuit stability in daily life, terminal blocks are one of the most essential but easily overlooked components. As a core electrical connecting ...
READ MORE

Glass Fuse Holders Industry knowledge

Cooperate with us

Quick Links
Home Products Industry Support Company News Contact Us
Product Categories
Power Connectors Waterproof Wire-to-Wire Connectors Automotive Connectors Wire-to-Board Connectors Controller Connector Systems PCB Screw Terminal Blocks Fuse Holders Ring Tongue Terminals Cold-Pressed Terminals Connector Contacts
Contact Us

Telephone: +86-577-62965566

Email: sales@zeetzj.com

Add：No. 8 Panzhuyang Road, Yanjiang Industrial Park, Beibaixiang Town, Yueqing City, Zhejiang Province

X Facebook

Products News

Item	Parameter
Model	BX3013
Product type	Flip-top in-line fuse holder
Compatible fuse	6×30 mm glass tube fuse
Rated voltage	300 V AC/DC
Applicable wire size	1.0–1.5 mm², AWG 17–15
Operating temperature	-25°C to +85°C
Contact resistance	≤0.015 Ω
Insulation resistance	≥1000 MΩ
Withstand voltage	1500 V AC / 1 min
Terminal material	Phosphor bronze
Surface treatment	Bright tin plating
Housing material	PAV0
Housing color	White
Certifications	RoHS, REACH, CQC, IATF 16949, ISO 14001

Pic	Part No.	Type	Description	Thickness	Material	Surface treatment	WireRange		Adapted housing	MPQ
Pic	Part No.	Type	Description	Thickness	Material	Surface treatment	AWG#	mm²	Adapted housing	MPQ
A	252572200033002	DJ2211A-5.7-2/With gear	Straight chain	0.35	Phosphor copper	Bright tin plating	17~15	1.0~1.5	BX3013	6000
B	252572200033003	DJ2211A-5.7-2/With step	Horizontal chain	0.35	Phosphor copper	Bright tin plating	17~15	1.0~1.5	BX3013	1600

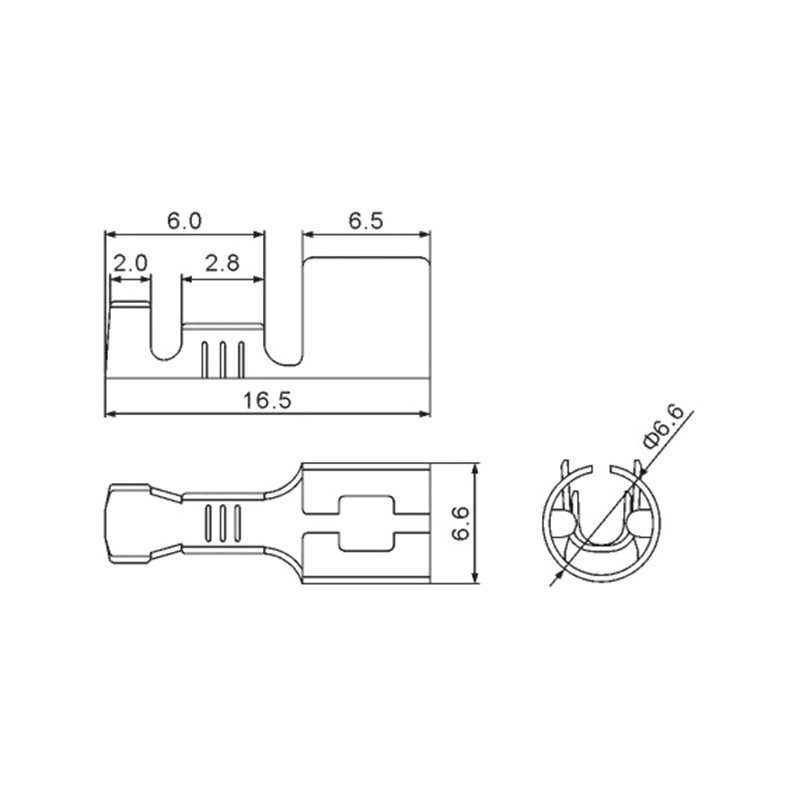

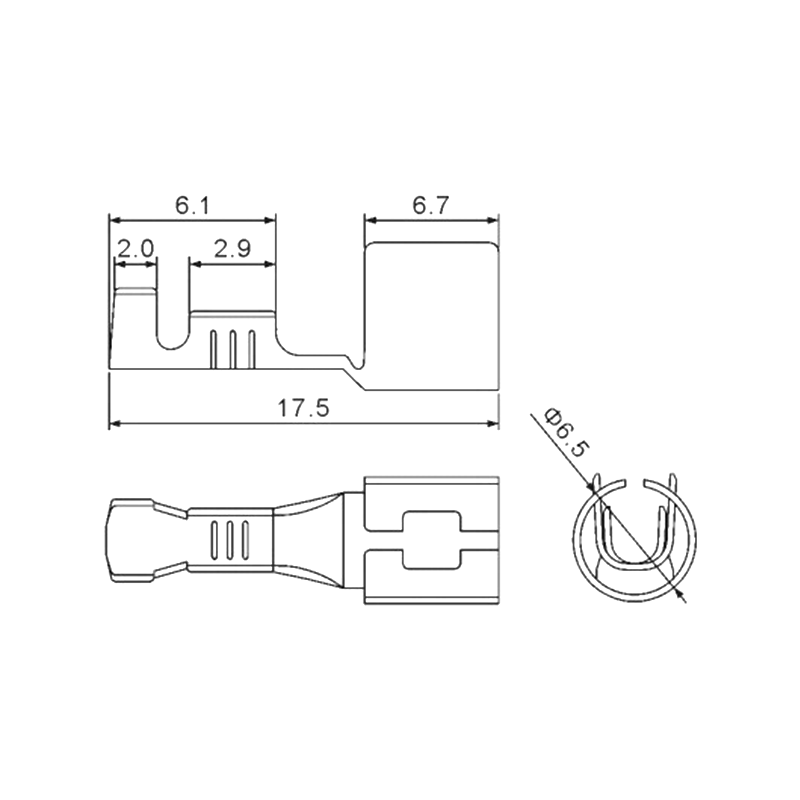

A(DJ221A-5.7-2/with gears)	B(DJ221A-5.7-2/with steps)

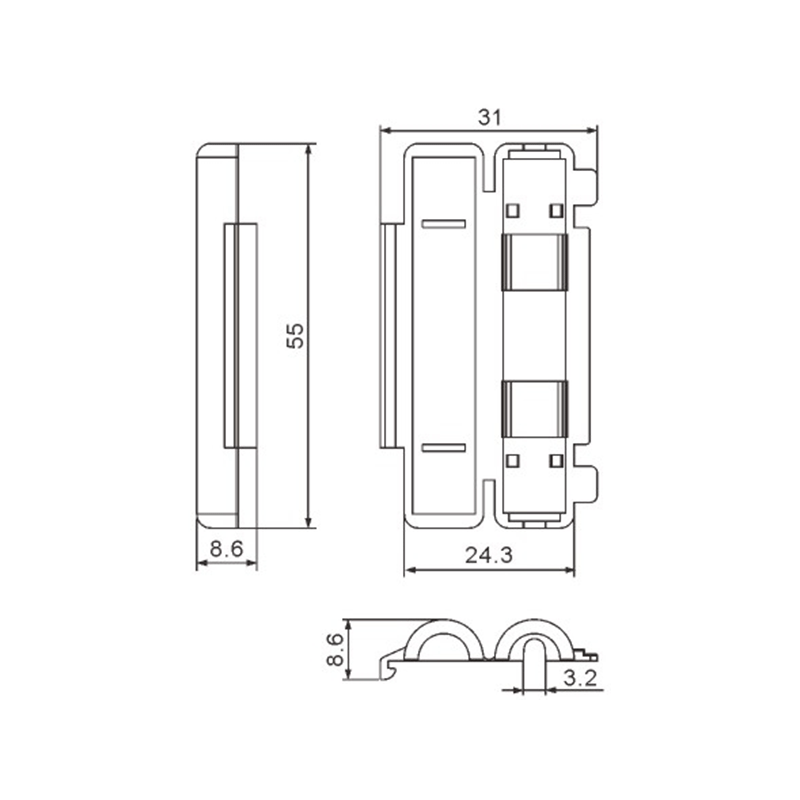

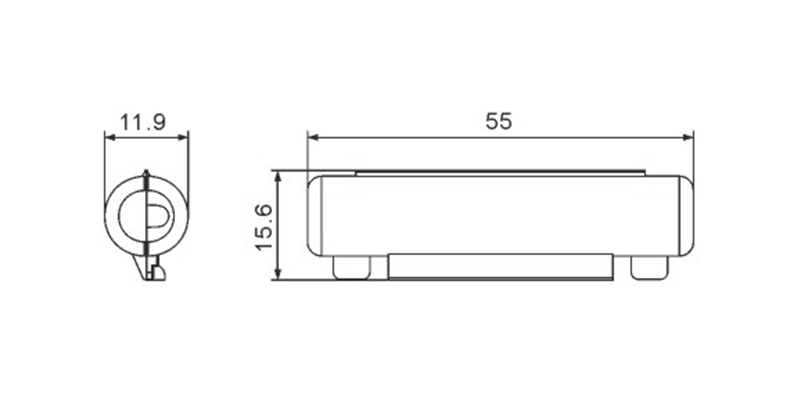

C(BX3013)	Mounting dimension

Wholesale BX3013 Flip-Top 6×30mm Glass Fuse Holder

BX3013 Flip-Top 6×30mm Glass Fuse Holder
