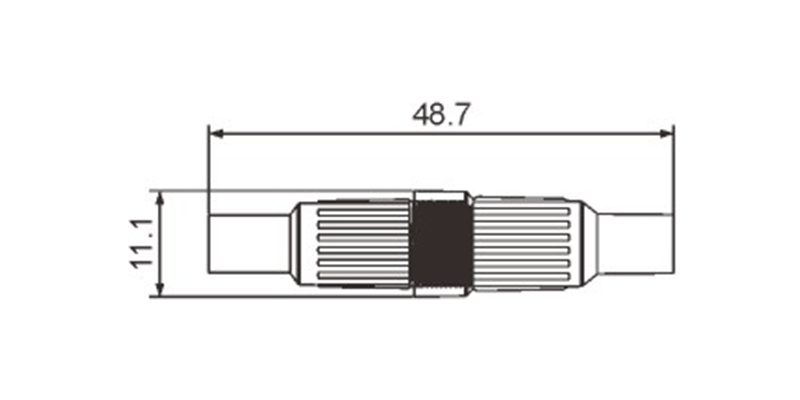

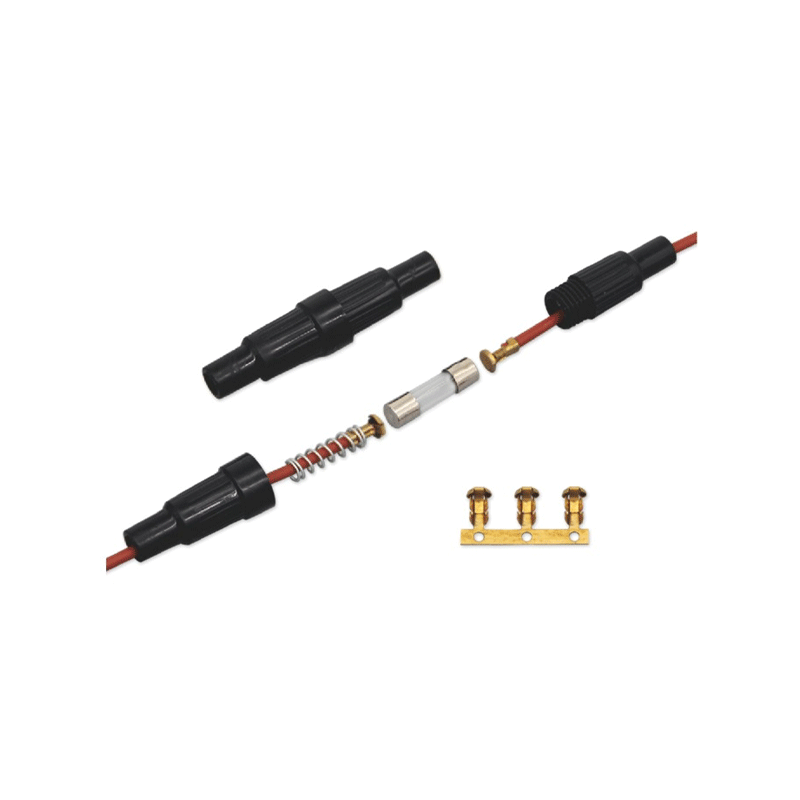

BX3011 Screw-Type 5×20mm Glass Fuse Holder

Key Features

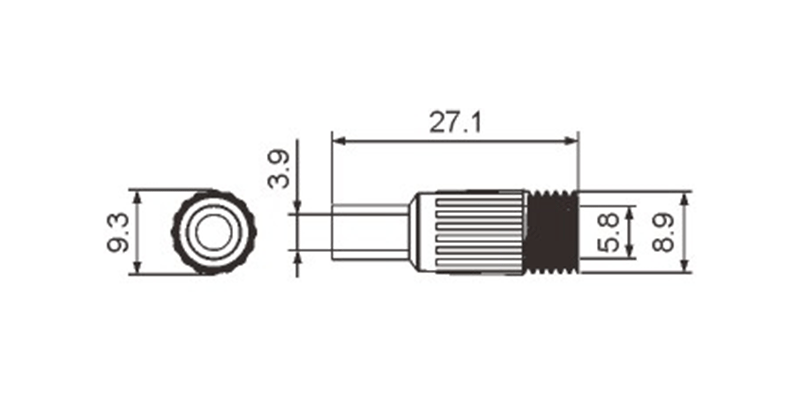

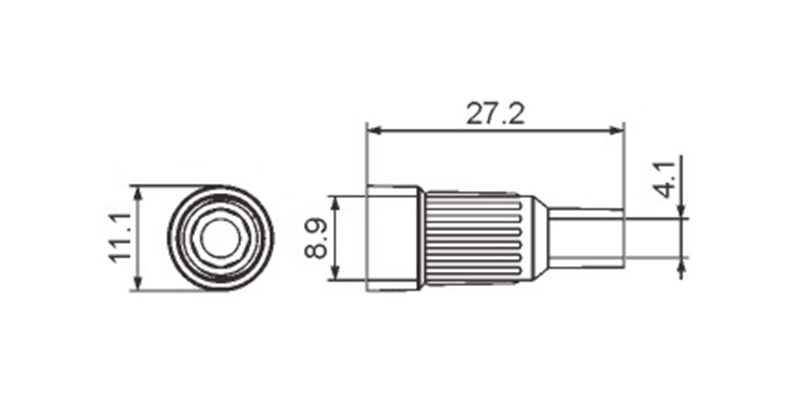

The threaded housing opens for direct fuse access during service.

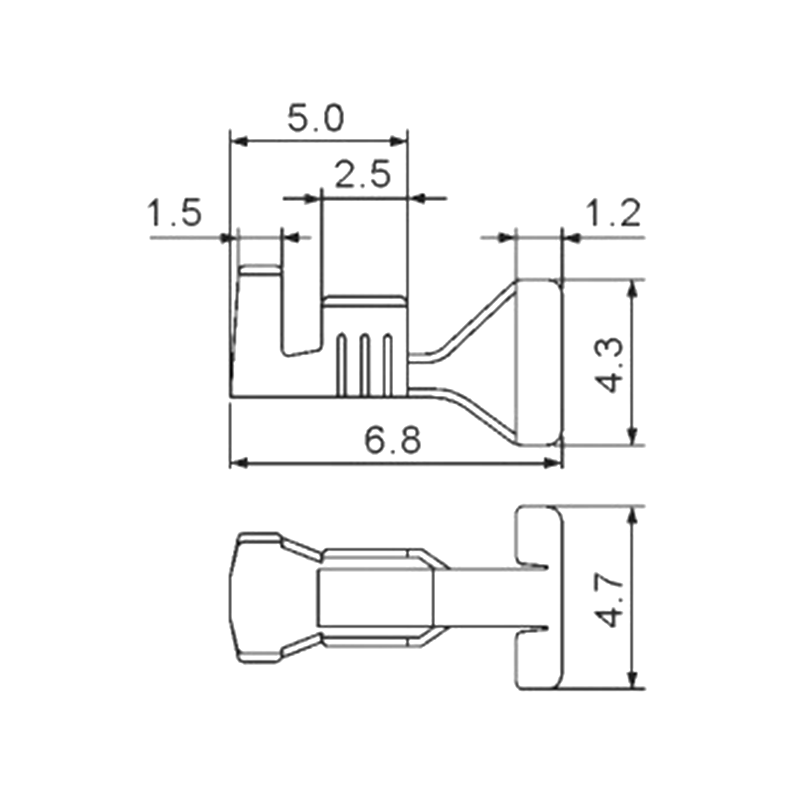

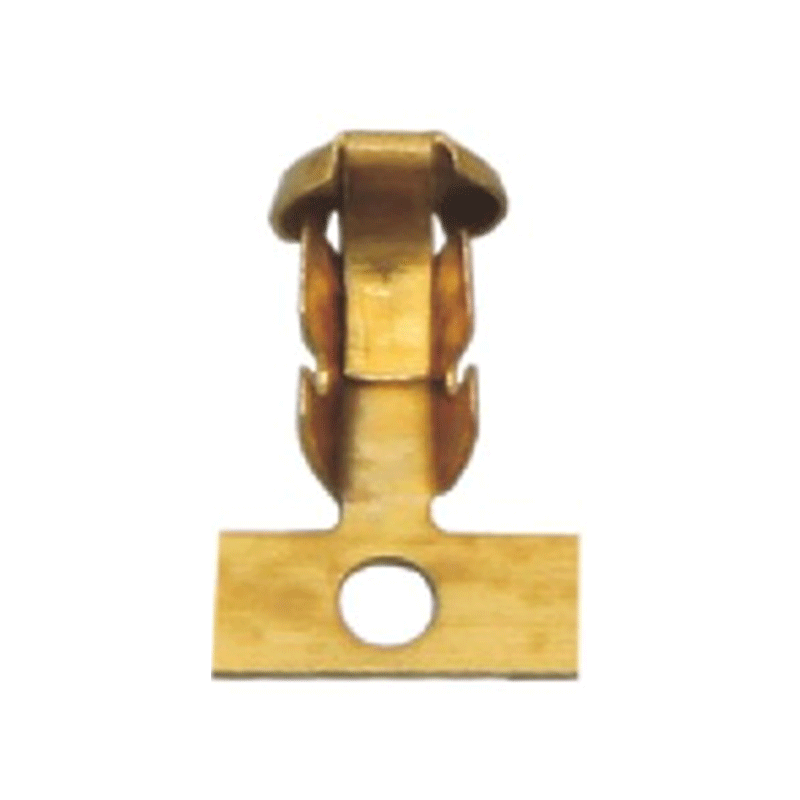

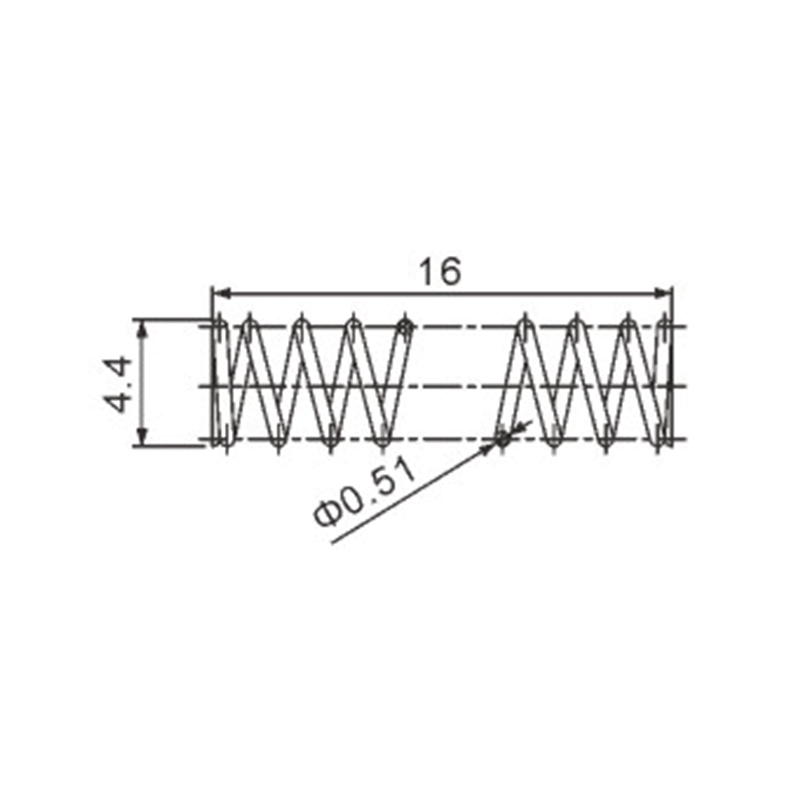

A spring contact arrangement retains the 5×20 mm glass tube fuse inside the assembled holder.

The in-line body can be integrated into a cable run for localized circuit protection.

Black PAV0 housing material is used for the listed holder configuration.

Applications

Low-voltage wiring harnesses Battery-powered equipment Electronic control circuits Compact electrical assemblies.

Ordering & Quotation Information

Please provide the required wire size, fuse specification, cable length, and order quantity. We can confirm the appropriate BX3011 configuration for your harness assembly.

FAQ

Q1: What fuse size does the BX3011 Screw-Type 5×20mm Glass Fuse Holder accept?
It is designed for a 5×20 mm glass tube fuse.

Q2: How is the fuse replaced?
Unscrew the threaded housing to access the fuse compartment.

Q3: What wire range is supported?
The listed wire range is 0.3–0.75 mm², equivalent to AWG 22–18.

Q4: Can it be supplied as part of a cable assembly?
Please send the cable drawing, wire specification, and quantity for evaluation.

Request a Quote

Send your cable and fuse requirements for the BX3011 Screw-Type 5×20mm Glass Fuse Holder. We will confirm the configuration and provide a quotation.
