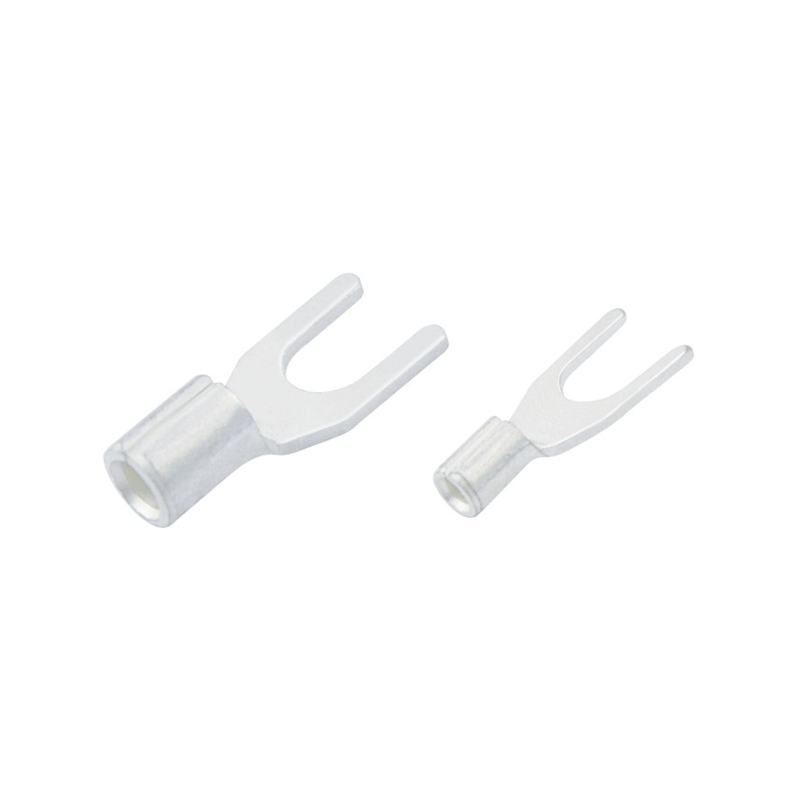

TU Cold-Pressed Uninsulated Fork Terminal Series-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

The fork profile supports serviceable stud or screw connections.

Uninsulated construction is suitable for applications using separate insulation or terminal protection.

Multiple conductor and stud-size options are listed.

Tin plating is applied to the copper terminal body.

Applications

Electrical control cabinets Power-distribution wiring Battery connections Industrial equipment assembly Wire-harness production.

Ordering & Quotation Information

Please provide the wire cross-section, stud size, selected SNB part number, required terminal dimensions, and quantity. We can confirm the suitable uninsulated fork terminal version.

FAQ

Q1: Why choose a fork terminal?
A fork terminal can be removed from a stud after loosening the fastener without fully removing the screw or nut.

Q2: What wire ranges are available?
The TU series covers 0.5–25 mm² conductors, depending on the selected part number.

Q3: Is this terminal insulated?
No. It is supplied as an uninsulated fork terminal.

Q4: How should I select the correct version?
Please provide the wire size, stud dimension, required terminal model, and order quantity.

Request a Quote

Send your wire and mounting requirements for the TU Cold-Pressed Uninsulated Fork Terminal Series. We will confirm the suitable model and quotation.

Item	Specification
Series	SNB / TU type
Product type	Uninsulated fork terminal
Terminal body	Copper
Plating	Tin
Insulation	None
Applicable wire range	0.5–25 mm², variant-dependent
Applicable wire gauges	AWG 22–4, variant-dependent
Maximum current	19A–115A, variant-dependent
Stud sizes	Multiple metric and American sizes
Crimping tool	ZT-101 or ZT-38, variant-dependent
Supply quantity	200–1,000 pcs/pack, variant-dependent
Certifications	CE, cULus, RoHS, CQC, IATF 16949, ISO

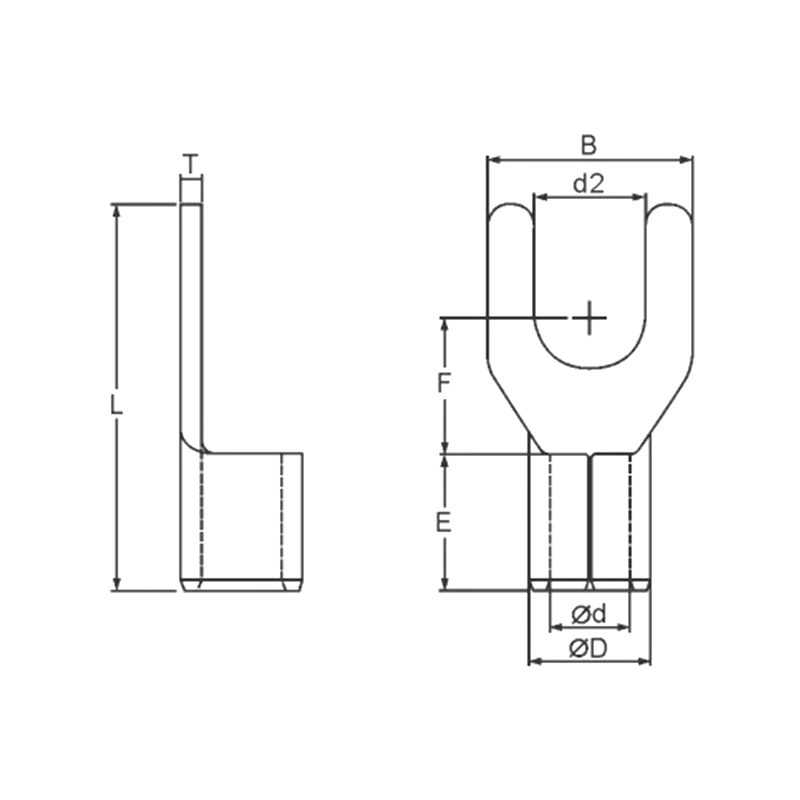

ITEM NO.	Stud size		Dimendion(mm)								PCS/PACK	Crimping Tool	EXPLANATION
ITEM NO.	Metric	American	d2	B	F	L	E	D	d	T	PCS/PACK	Crimping Tool	EXPLANATION
SNB 1.25-3	3	#4	3.2	5.7	6.5	16	5	3.4	1.9	0.75	1000	ZT-101	Wire range: 0.5-1.5mm² Max current:19A A.W.G: (22-16)
SNBS 1.25-3.5	3.5	#6	3.7	5.7
SNBL 1.25-3.5	3.5	#6	3.7	6.4
SNBS 1.25-4	4	#8	4.3	6.4	6.2
SNBM 1.25-4	4	#8	4.3	7.2	6.2
SNBL 1.25-4	4	#8	4.3	8.1	6.5
SNBS 1.25-5	5	#10	5.3	8.1
SNBL 1.25-5	5	#10	5.3	9.5
SNBS 1.25-6	6	1/4"	6.4	9.5
SNBL 1.25-6	6	1/4"	6.4	12	11	22
SNB 2-3	3	#4	3.2	5.7	6.5	16	5	4	2.4	0.8	1000	ZT-101	Wire range: 38mm² Max current:160A A.W.G: (16-14)
SNBS 2-3.5	3.5	#6	3.7	5.7
SNBL 2-3.5	3.5	#6	3.7	7.1
SNBM 2-4	4	#8	4.3	7.1
SNBS 2-4	4	#8	4.3	6.4
SNBL 2-4	4	#8	4.3	8.1
SNBS 2-5	5	#10	5.3	8.1
SNBL 2-5	5	#10	5.3	9.5
SNBS 2-6	6	1/4"	6.4	9.5
SNBL 2-6	6	1/4"	6.4	12	11	22
SNB 3.5-3	3	#4	3.2	5.7	6.5	18.3	6.3	5	3	1	1000	ZT-101	Wire range: 2.5-4mm² Max current:37A A.W.G: (14-12)
SNB 3.5-4	4	#8	4.3	8	7
SNB 3.5-5	5	#10	5.3	8	7.5
SNB 3.5-6	6	1/4"	6.4	12	9	21.5

ITEMNO.	Studsize		Dimendion(mm)								PCS/PACK	CrimpingTool	EXPLANATION
ITEMNO.	Metric	American	d2	B	F	L	H	D	d	T	PCS/PACK	CrimpingTool	EXPLANATION
SNB5.5-3.5	3.5	#6	3.7	8.3	7.5	19.8	7.2	5.5	3.5	1	1000	ZT-101	Wirerange:4-6mm²Maxcurrent:48A A.W.G:(12-10)
SNBS5.5-4	4	#8	4.3	8.3	7.5	19.8
SNBL5.5-4	4	#8	4.3	9.5	7	19.6
SNB5.5-5	5	#10	5.3	9	7.3
SNBS5.5-6	6	1/4"	6.4	9	7.8
SNBL5.5-6	6	1/4"	6.4	12	12	25.5
SNB5.5-8	8	5/16"	8.4	14	11.5	24.5
SNB8-4	4	#8	4.3	8.8	9.5	23.5	8.7	7	4.6	1.2	500	ZT-38	Wirerange:6-10mm²Maxcurrent:62A A.W.G:(8)
SNB8-5	5	#10	5.3	11.8	8.5	24.3
SNB8-6	6	1/4"	6.4	11.8	8.5	24.3
SNB8-8	8	5/16"	8.5	14.5	12	28.2
SNB14-5	5	#10	5.3	11	11	28.5	10.5	9	6.2	1.4	250	ZT-38	Wirerange:10-16mm²Maxcurrent:88A A.W.G:(6)
SNB14-6	6	1/4"	6.4	12	10
SNB14-8	8	5/16"	8.4	13.8	11
SNB22-8	8	5/16"	8.4	13.8	13	34.5	12	11.6	8	1.7	200	ZT-38	Wirerange:16-25mm²Maxcurrent:115A A.W.G:(4)
