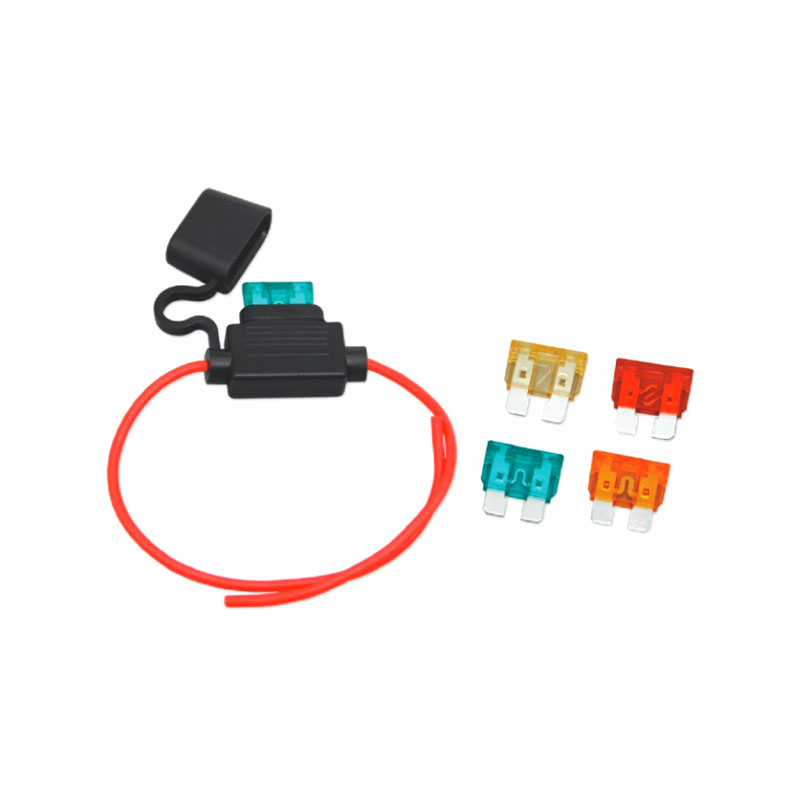

ZT2011-2 In-Line Mid Blade Fuse Holder

The ZT2011-2 In-Line Mid Blade Fuse Holder is a lead-wire fuse holder with a protective cap for 19×19×14 mm blade fuses. It is designed for harness assemblies that require a cable-mounted, replaceable fuse location.

The ZT2011-2 In-Line Mid Blade Fuse Holder covers a listed wire range of 1.0–3.0 mm² and fuse-current options from 10 A to 30 A.

Inquiry Now
PREV：No previous article NEXT：ZT2011-1-B In-Line Mid Blade Fuse Holder
  • Product Details
  • Parameter

Key Features

The lead-wire format can be incorporated into a harness assembly.

A protective cap covers the fuse-holder section.

The holder is designed for 19×19×14 mm blade fuses.

Its listed wire range extends to 3.0 mm² for larger conductor requirements.


Applications

Battery power leads Electric mobility harnesses Auxiliary power distribution circuits Low-voltage electrical equipment.


Ordering & Quotation Information

Please provide the required wire size, fuse-current rating, cable length, and target quantity. We can review the suitable configuration for your cable assembly.


FAQ

Q1: What fuse type does the ZT2011-2 In-Line Mid Blade Fuse Holder use?
It is designed for a 19×19×14 mm blade fuse.

Q2: What wire range is listed?
The holder is listed for 1.0–3.0 mm² conductors.

Q3: Does this model include a protective cap?
The illustrated ZT2011-2 In-Line Mid Blade Fuse Holder configuration includes a protective cap.

Q4: What fuse-current range is listed?
The listed fuse-current options are 10 A to 30 A.


Request a Quote

Send your cable and fuse requirements for the listed product. We will confirm the suitable configuration and provide a quotation.
